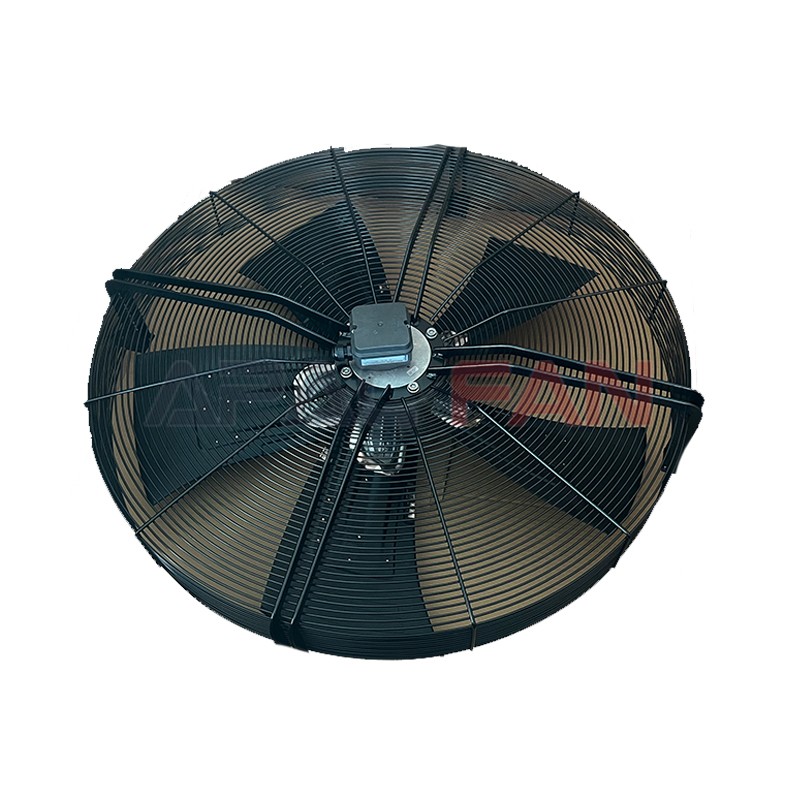

Ebm-papst S6D910-CA01-01 Industrial Cooling Tower & Large Condenser Fan | Heavy-duty Cooling
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
S6D910-CA01-01
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
910
Max.Air Flow(m³/h)：
32100
Max.Pressure(Pa)：
150
Input Power(W)：
2480
Speed(rpm)：
930
Noise(db)：
77
Description

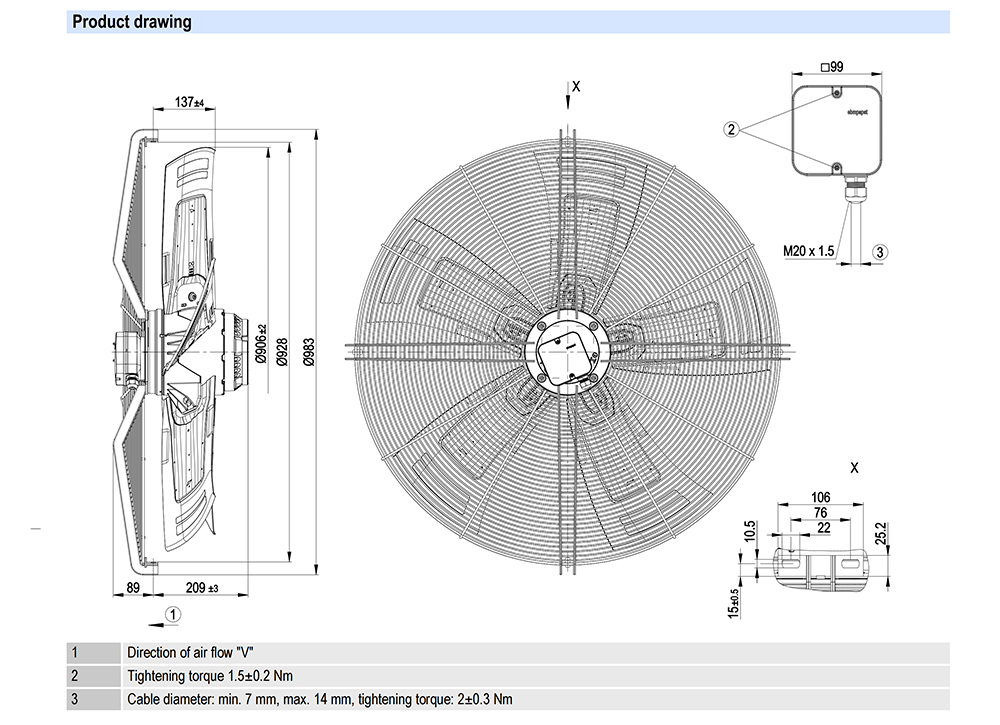

S6D910-CA01-01 Ebm-papst Specification drawing：
Related Products
-

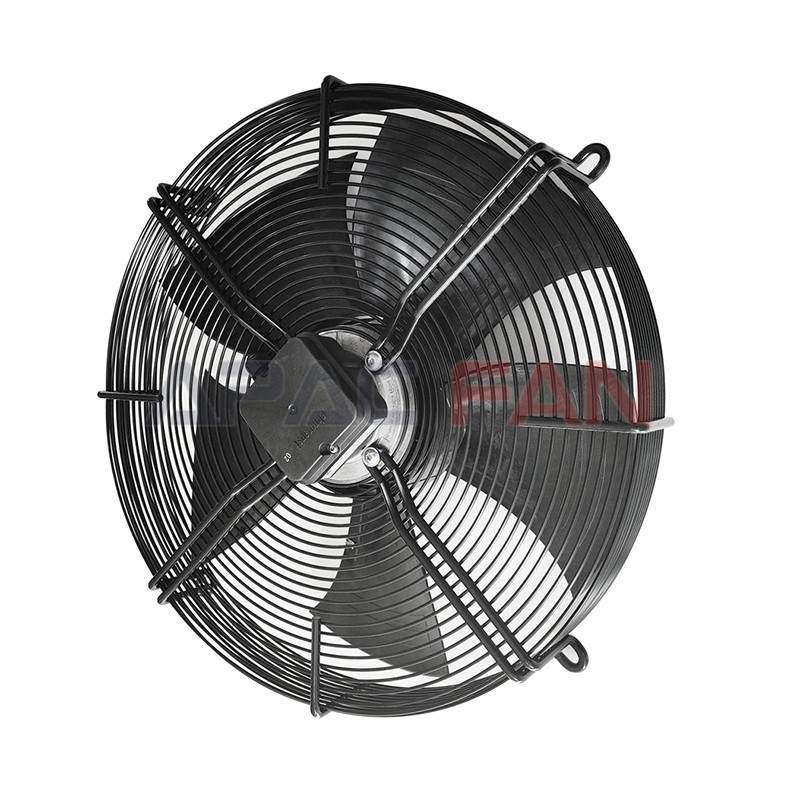

Ebm-papst S6D630-AN01-02 Condenser Axial Cooling Fan | High-efficiency AC Drive
-
