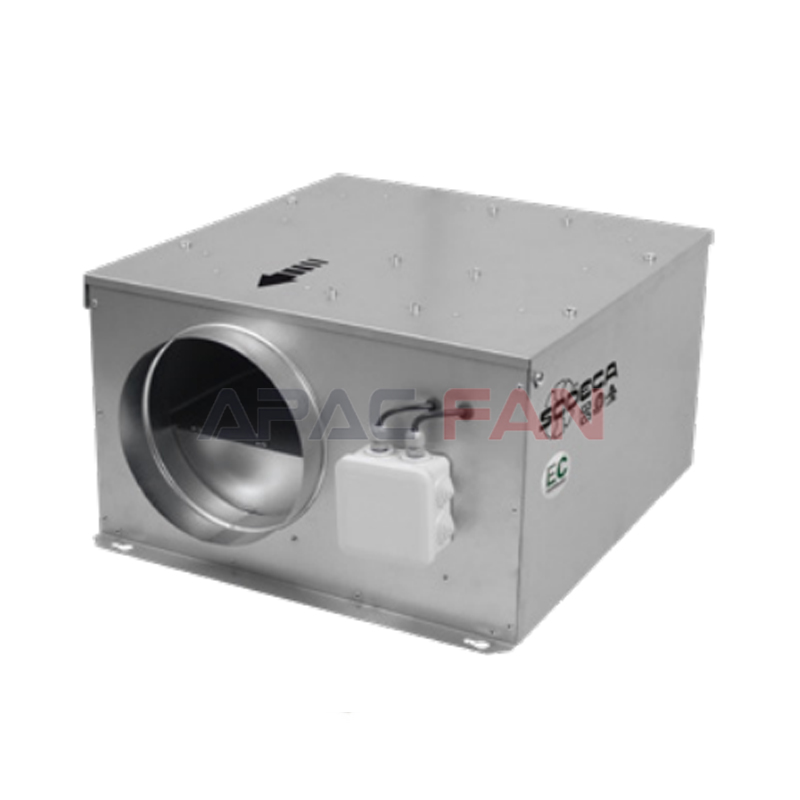

SVE/PLUS/EW Low noise in-line duct extractor fans mounted inside a 40 mm phonoabsorbent acoustic insulated casing
Nominal data
Description
Fan:
• Acoustic casing covered with sound absorbing material.
• All models equipped with a backward curved impeller.
• Standardised inlet and outlet flanges allowing for easy installation in ducts.
• Fitted with a folding inspection hatch.
• Support feet integrated into the box which facilitates its assembly.
• Linear airflow direction.
• Adjustable speed via a built-in 10 kΩ potentiometer MTP010, or an external 0-10 V signal.
Motor:
• EC Technology external rotor motors with high efficiency and built-in variable speed drive controlled by 0‐10 V signal.
• Single-phase 200-240 V 50/60 Hz, IP54 protection.
• Maximum temperature of air to be carried: ‐25 ºC +60 ºC. Except model SVE/PLUS/EW‐200/H, ‐25 ºC +45 ºC.
Finish:
• Galvanised steel sheet.
SVE/PLUS/EW-100/H 390x500x285
SVE/PLUS/EW-125/H 390x500x285
SVE/PLUS/EW-150/H 390x500x285
SVE/PLUS/EW-160/H 390x500x285
SVE/PLUS/EW-200/H 642x512x355
SVE/PLUS/EW-250/H 642x512x355
SVE/PLUS/EW-315/H 790x592x435
SVE/PLUS/EW-350/H 630x840x618
SVE/PLUS/EW-400/H 720x885x805
