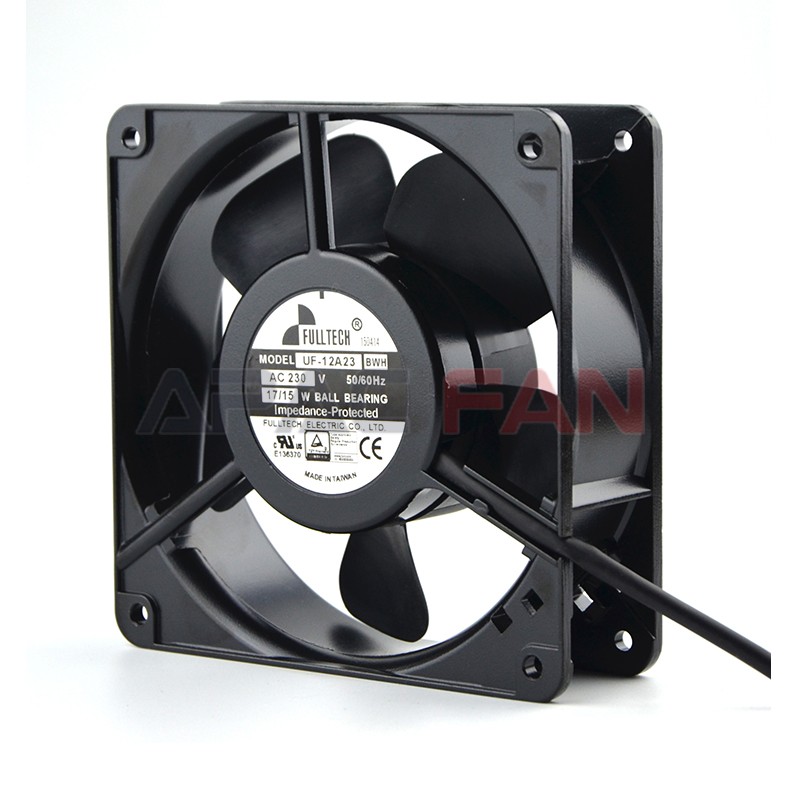

FULLTECH UF12A23BWH for UPS and LED Display Applications

Brand：

Fulltech

Category：

Compact Fan

Description：

Brand：FULLTECH
Part No：UF12A23BWH
Fan Type：Compact Fan
Rated Voltage(V)：230
Size(mm)：120*120*38
Max.Air Flow(m³/h)：180
Input Power(W)：15
Speed(RPM)：3100
Noise(dB)：46

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF12A23BWH

Fan Type：

Compact Fan

Rated Voltage(V)：

230

Size(mm)：

120*120*38

Max.Air Flow(m³/h)：

180

Max.Pressure(Pa)：

Input Power(W)：

15

Speed(rpm)：

3100

Noise(db)：

46

Description

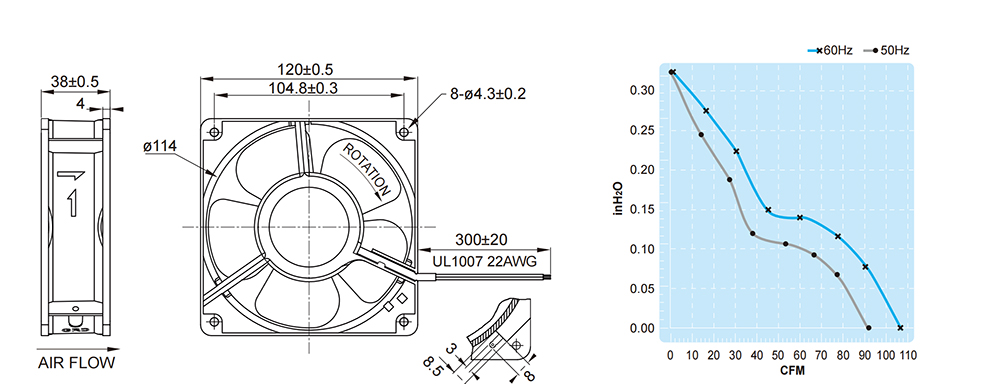

UF12A23BWH FULLTECH Specification drawing：
