W3G800-KU21-05/F04 Ebm-papst Axial Fan
Brand：
ebmpapst
Category：
Axial Fan
Description：
EC Axial Fan Features:
High-Efficiency EC Brushless Motor for Outstanding Energy Savings.
Supports 0–10V, PWM, Modbus and other control methods.
Long service life and minimal maintenance.
High-Efficiency EC Brushless Motor for Outstanding Energy Savings.
Supports 0–10V, PWM, Modbus and other control methods.
Long service life and minimal maintenance.
Nominal data
Brand：
ebmpapst
Part No.：
W3G800-KU21-05/F04
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
800
Max.Air Flow(m³/h)：
29640
Max.Pressure(Pa)：
260
Input Power(W)：
2900
Speed(rpm)：
1100
Noise(db)：
77
Description

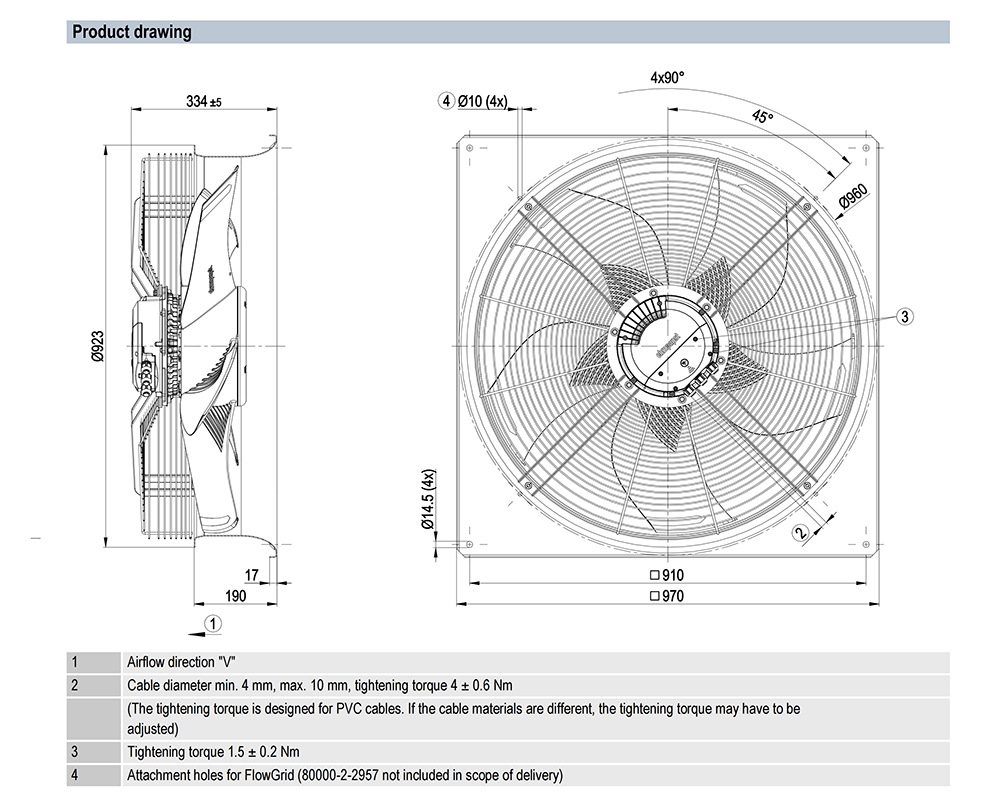

W3G800-KU21-05/F04 Ebm-papst Specification drawing：
