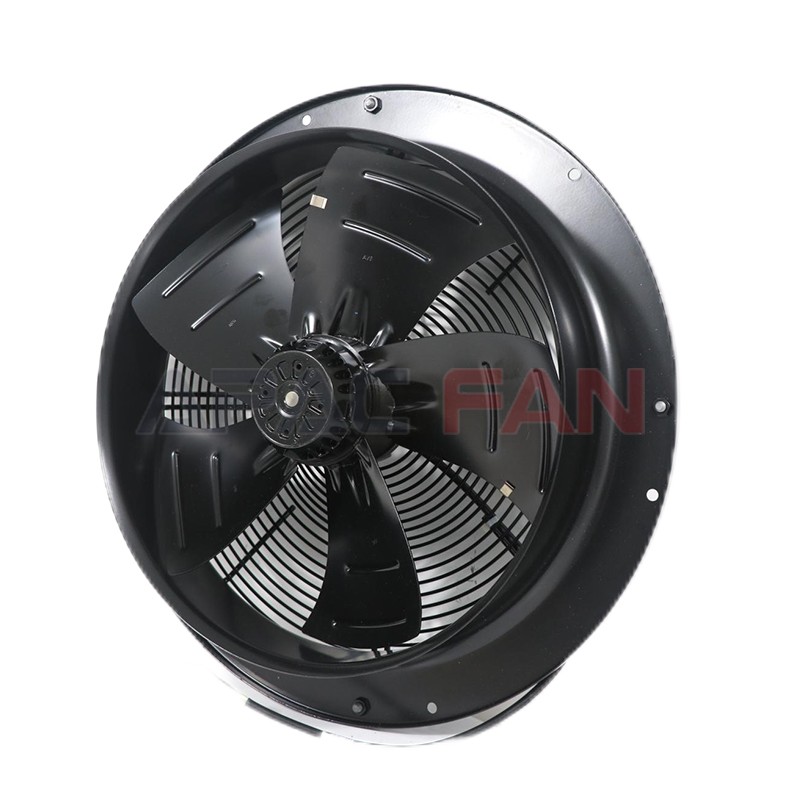

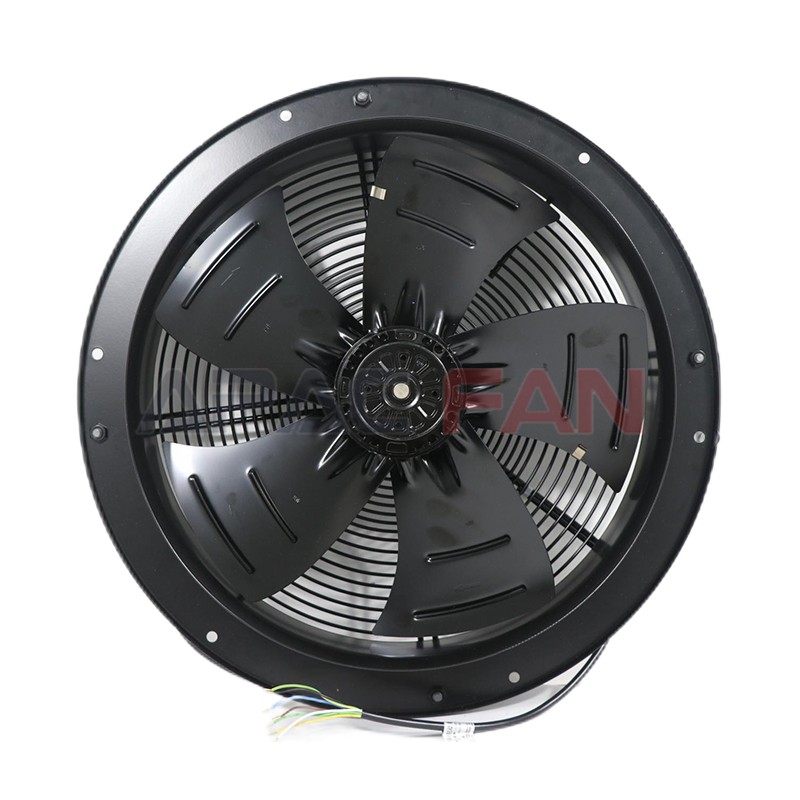

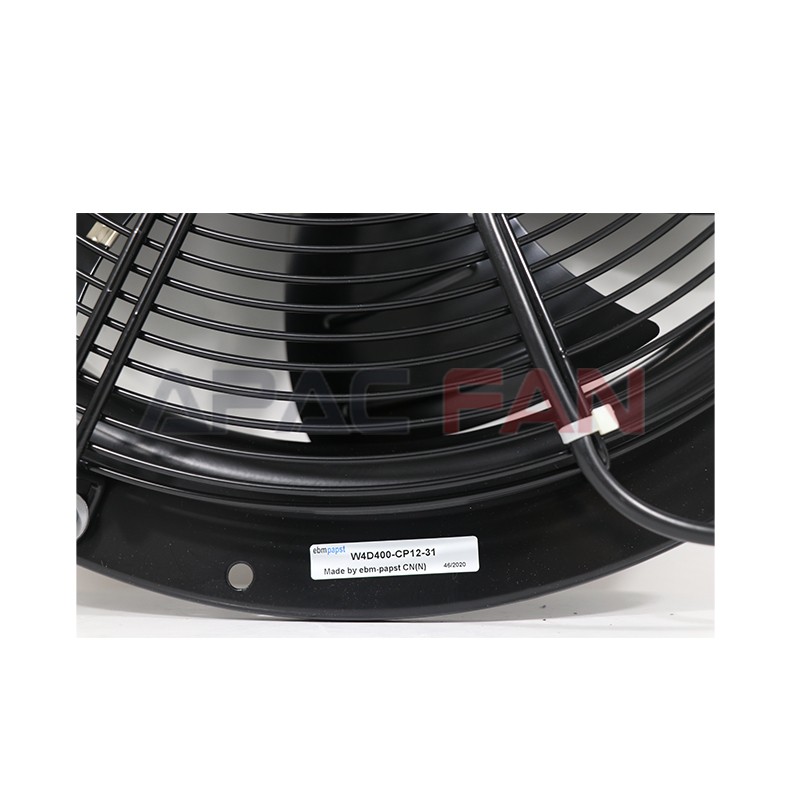

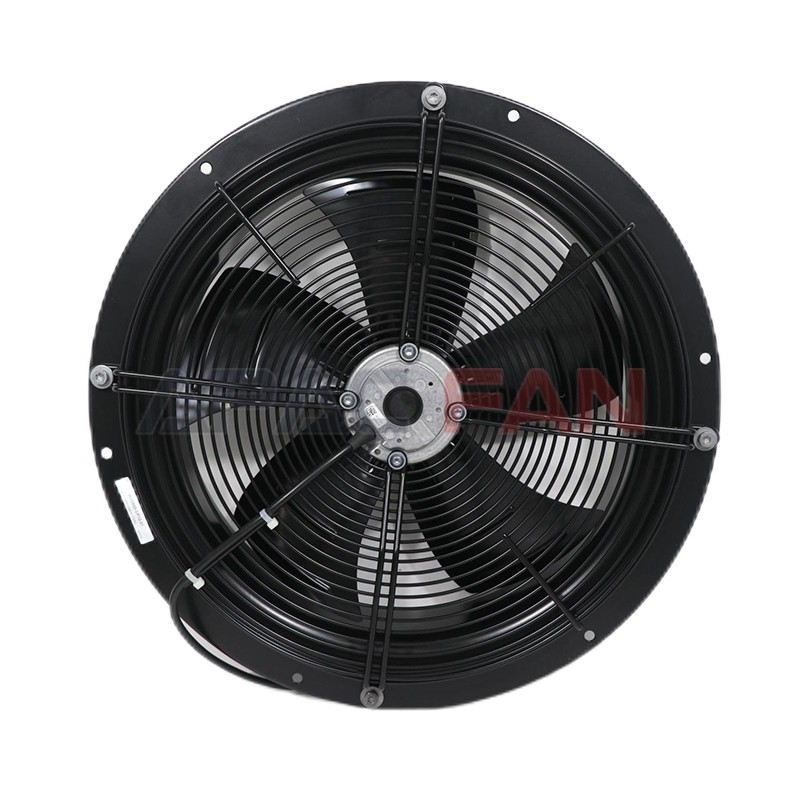

W4D400-CP12-31 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

W4D400CP1231.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：W4D400-CP12-31
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：400
Max.Air Flow(m³/h)：4615
Max.Pressure(Pa)：120
Input Power(W)：185
Speed(RPM)：1690
Noise(dB)：59

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W4D400-CP12-31

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

400

Max.Air Flow(m³/h)：

4615

Max.Pressure(Pa)：

120

Input Power(W)：

185

Speed(rpm)：

1690

Noise(db)：

Description

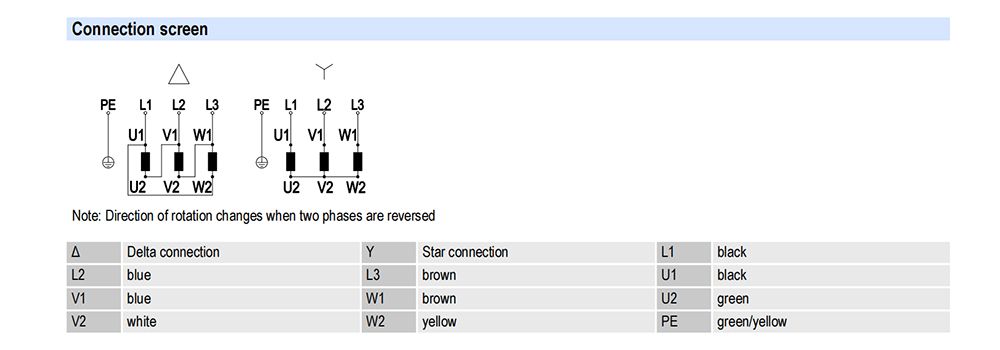

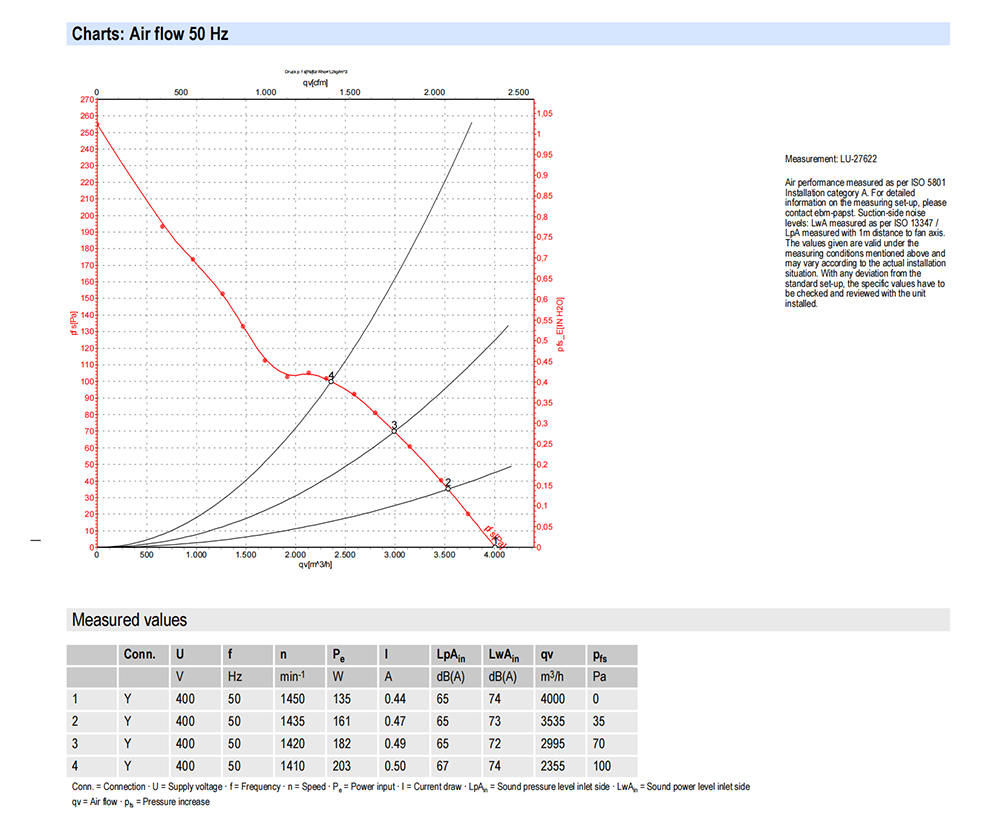

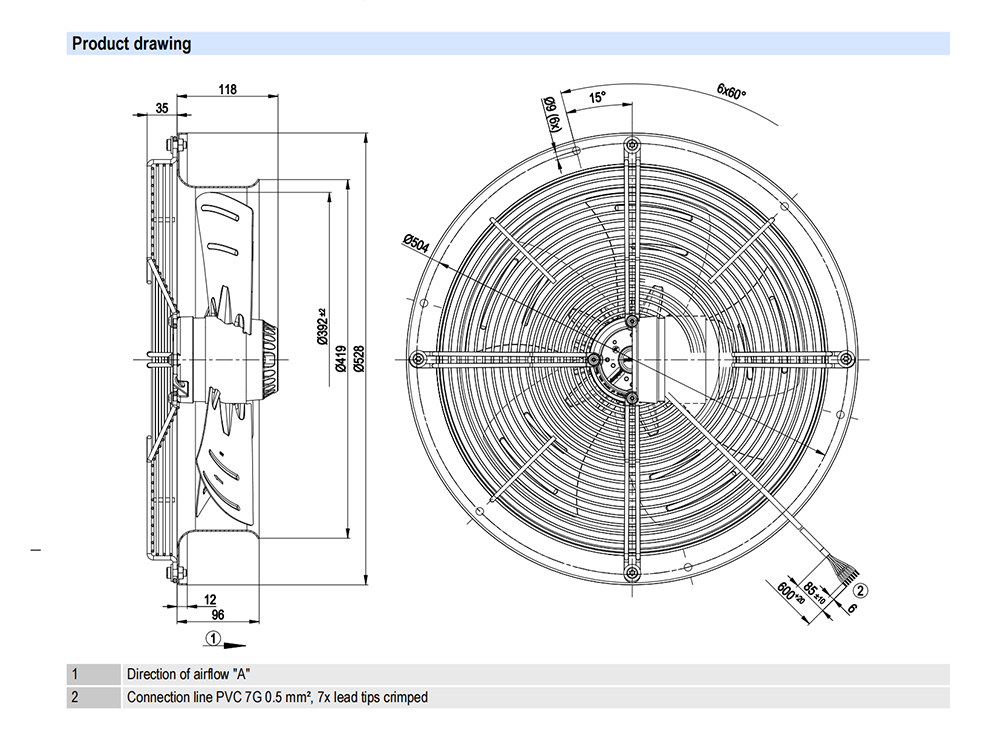

W4D400-CP12-31 Ebm-papst Specification drawing：
