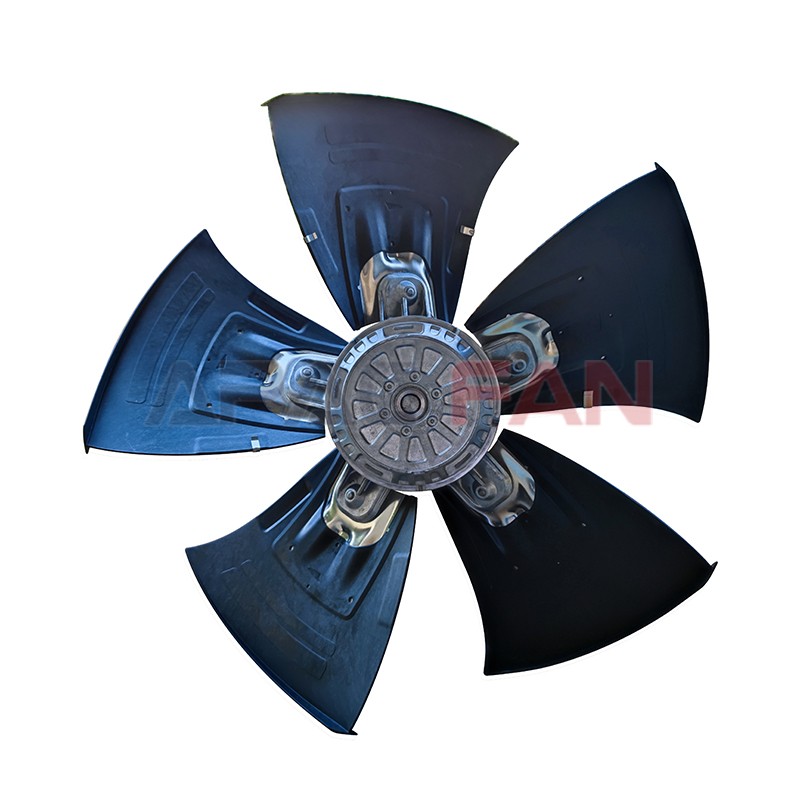

Ebm-papst A4D630-AD01-01 Condenser Axial Fan | High Airflow

Brand：

ebmpapst

Document：

A4D630AD0101.PDF

Category：

Axial Fan

Description：

1、Low Noise & Optimized Aerodynamic Design
Advanced aerodynamic airflow design effectively reduces air noise while maintaining high airflow performance for quieter operation.
2、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A4D630-AD01-01

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

630

Max.Air Flow(m³/h)：

19890

Max.Pressure(Pa)：

220

Input Power(W)：

2630

Speed(rpm)：

1375

Noise(db)：

Description

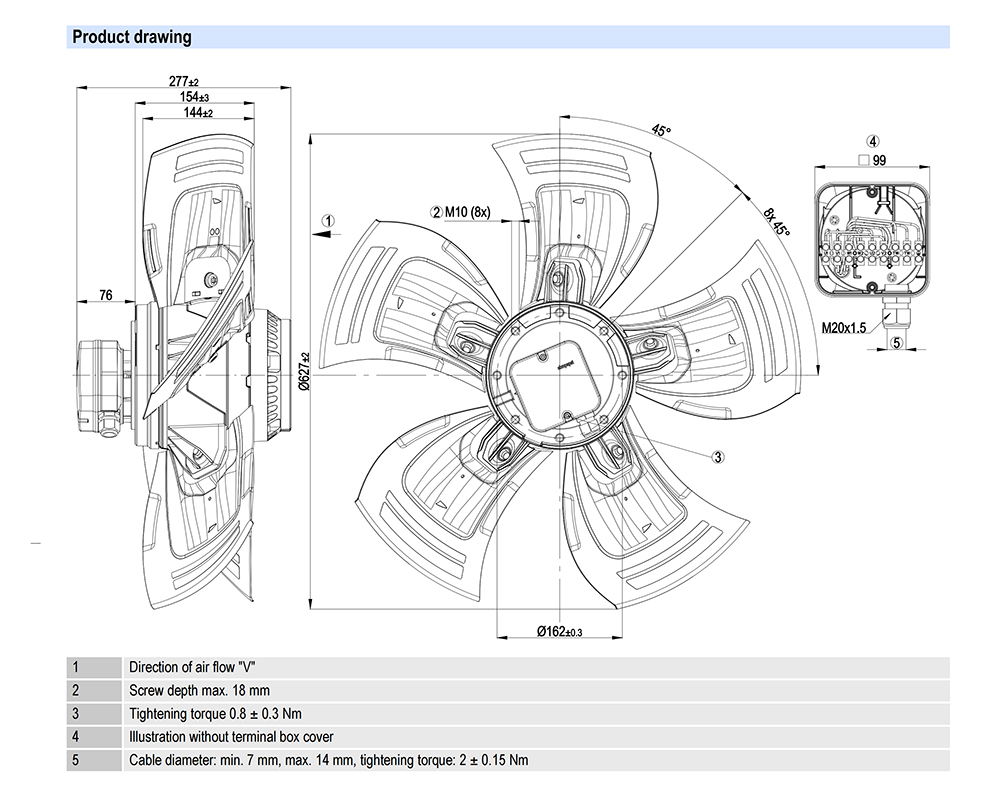

A4D630-AD01-01 Ebm-papst Specification drawing：
