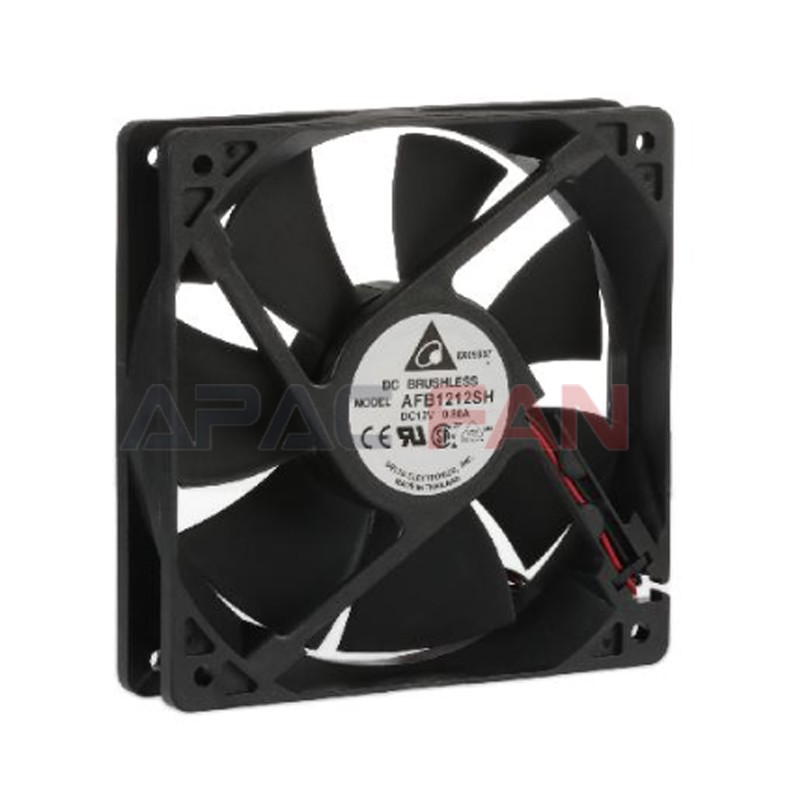

AFB1212SH DC Axial Cooling Fan
Brand：
DELTA
Category：
Axial Fan
Description：
Brand：Delta
Part No：AFB1212SH
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：120*120*25
Max.Air Flow(m³/h)：66.5
Max.Pressure(Pa)：11
Input Power(W)：6.36
Speed(RPM)：3400
Noise(dB)：46.5
Part No：AFB1212SH
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：120*120*25
Max.Air Flow(m³/h)：66.5
Max.Pressure(Pa)：11
Input Power(W)：6.36
Speed(RPM)：3400
Noise(dB)：46.5
Nominal data
Brand：
DELTA
Part No.：
AFB1212SH
Fan Type：
Axial Fan
Rated Voltage(V)：
12
Size(mm)：
120*120*25
Max.Air Flow(m³/h)：
67
Max.Pressure(Pa)：
11
Input Power(W)：
6.36
Speed(rpm)：
3400
Noise(db)：
46.5
Description

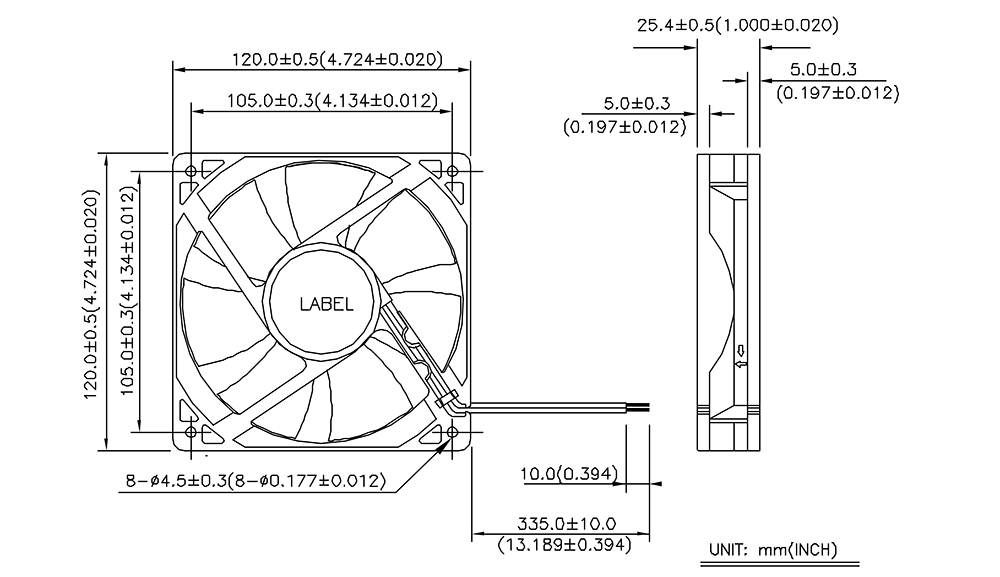

AFB1212SH DELTA Specification drawing：
