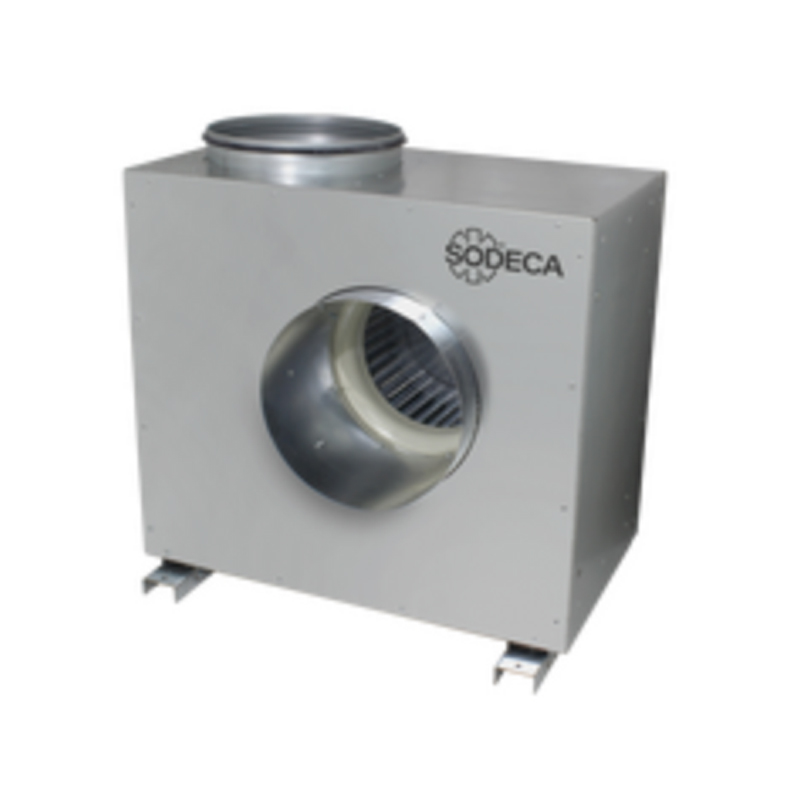

CKD Smoke Extract Fans SODECA
Description
Fan:
• Galvanised sheet steel structure.
• 40 mm acoustic insulation.
• Forward curved impeller in galvanised sheet steel.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR-2358.
• Changeable opening door direction thanks to its interchangeable hinges.
• Adjustable in different positions.
• Prepared for continuous work at 120 ºC.
• Motor cover accessory (CM) supplied with fan.
• Condensate drain.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz.
• Working temperature: -25 ºC +50 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Special windings for different voltages.
