> Product Center > ZIEHL-ABEGG > Axial Fan > AC Axial Fan

Product

Back

FC091-SDS.7Q.V7

Brand：
ZIEHL-ABEGG
Category：
Axial Fan
Description：
The ZIEHL-ABEGG FC091-SDS.7Q.V7 is a large axial fan for compatible ventilation and heat-exchanger equipment with 400 V supply, 910 mm fan size, maximum airflow of 37,500 m³/h, maximum pressure of 400 Pa, 3,600 W power input, 890 rpm speed and IP54 protection.
00852-56261528 info@apacfan.com

Nominal data

Brand：
ZIEHL-ABEGG
Part No.：
FC091-SDS.7Q.V7
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
910
Max.Air Flow(m³/h)：
37500
Max.Pressure(Pa)：
400
Input Power(W)：
3600
Speed(rpm)：
890
Noise(dB)：
80

Description

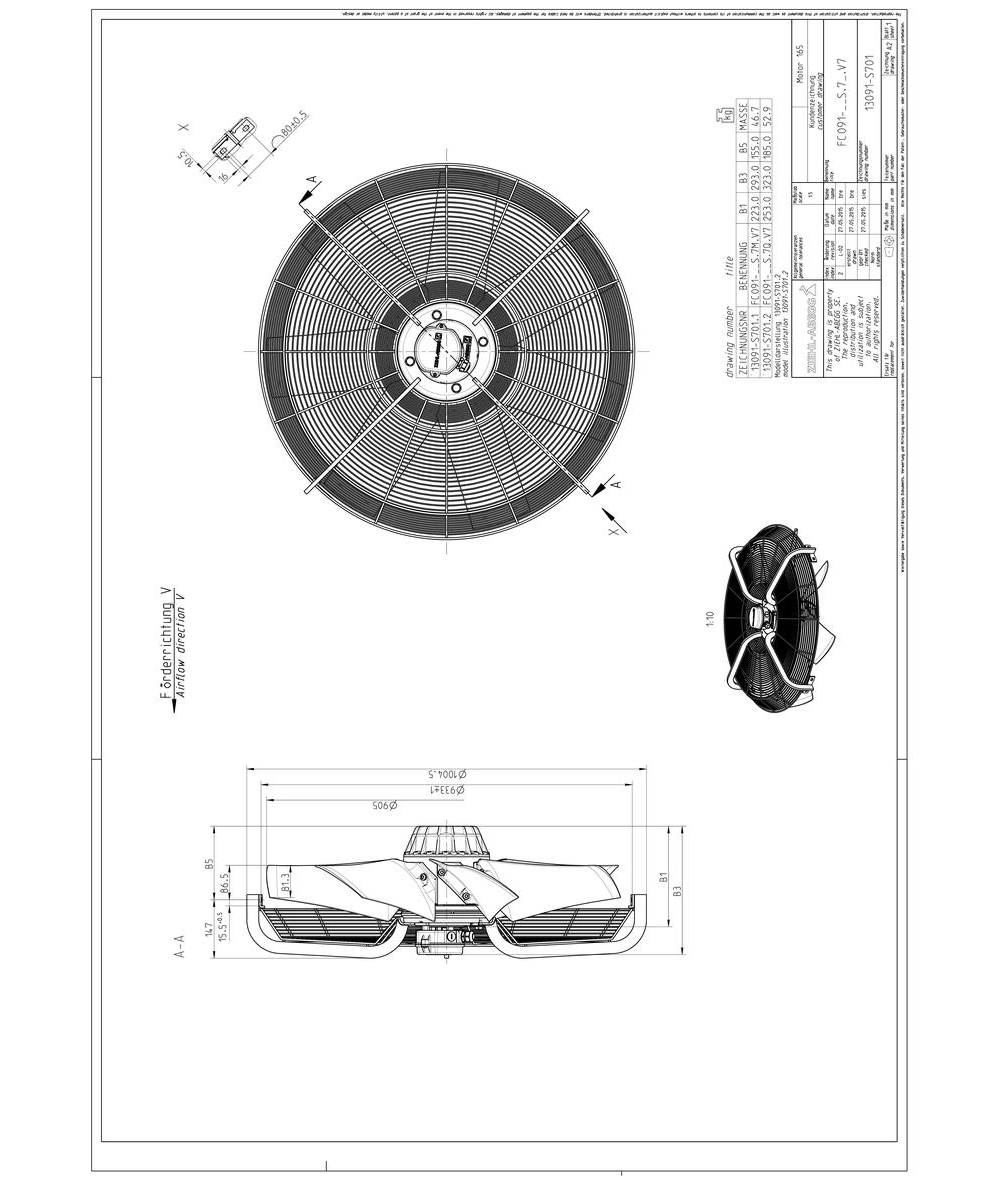

FC091-SDS.7Q.V7 Ziehl-Abegg Specification Drawing：

Key Selection Information

Use the existing specification table as the primary technical element. Keep the model number, brand, fan type, 910 mm size and 400 V supply visible above the fold so users can confirm product relevance immediately.

Application Considerations

Large axial fans are commonly evaluated for heat-exchanger and ventilation equipment where high airflow is required. Confirm the actual system resistance, operating temperature, installation geometry and electrical requirements before selection.

Replacement Check

For replacement, compare the complete FC091-SDS.7Q.V7 model code, dimensions, mounting, voltage, airflow direction and operating point. Do not replace it solely on the basis of diameter and voltage.

FAQ

Q1. What size is FC091-SDS.7Q.V7?

A1. APAC FAN currently lists a 910 mm fan size.

Q2. What voltage is listed?

A2. The current APAC FAN data lists 400 V.

Q3. What is the listed maximum airflow?

A3. APAC FAN currently lists 37,500 m³/h.

Q4. What is the listed speed?

A4. APAC FAN currently lists 890 rpm.

Q5. What should be checked before replacement?

A5. Check the complete model, electrical supply, dimensions, mounting and required airflow/static pressure operating point.

Need help confirming the correct fan for a replacement or new project? Send APAC FAN the existing model number, required airflow, static pressure, voltage, installation dimensions and control requirements. Our team can help you identify a suitable product and check availability.
