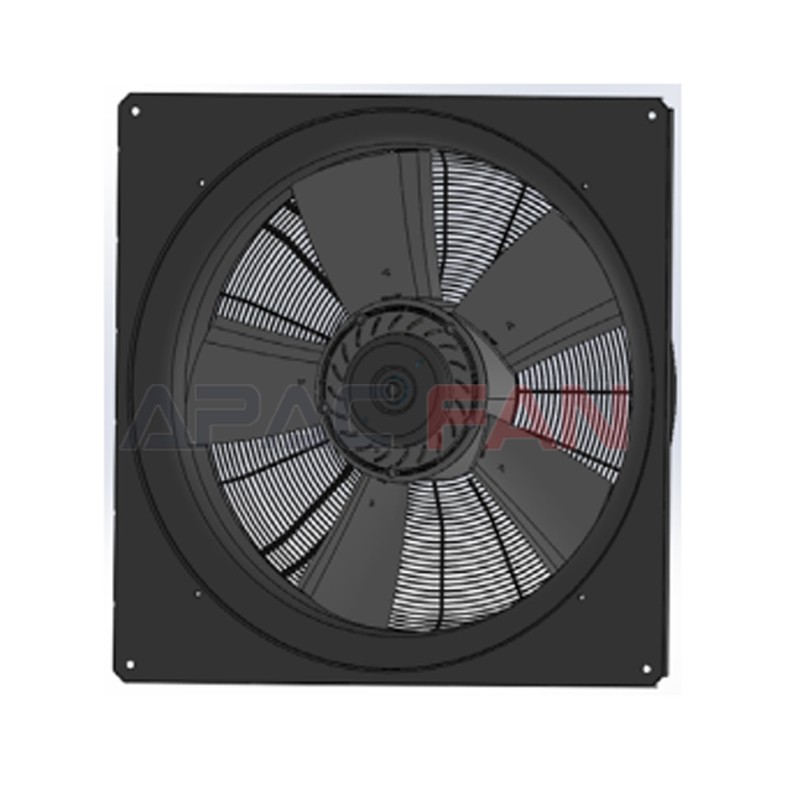

GTW080PUU26E

Brand：

DELTA

Category：

Axial Fan

Description：

Benefits of Delta EC Fans:
· Optional inlet nozzle and mounting bracket
· Variable input range
· APFC, PPFC
· 0-10V PWM speed control
· RS485, Modbus
· UL/cUL

00852-56261528 info@apacfan.com

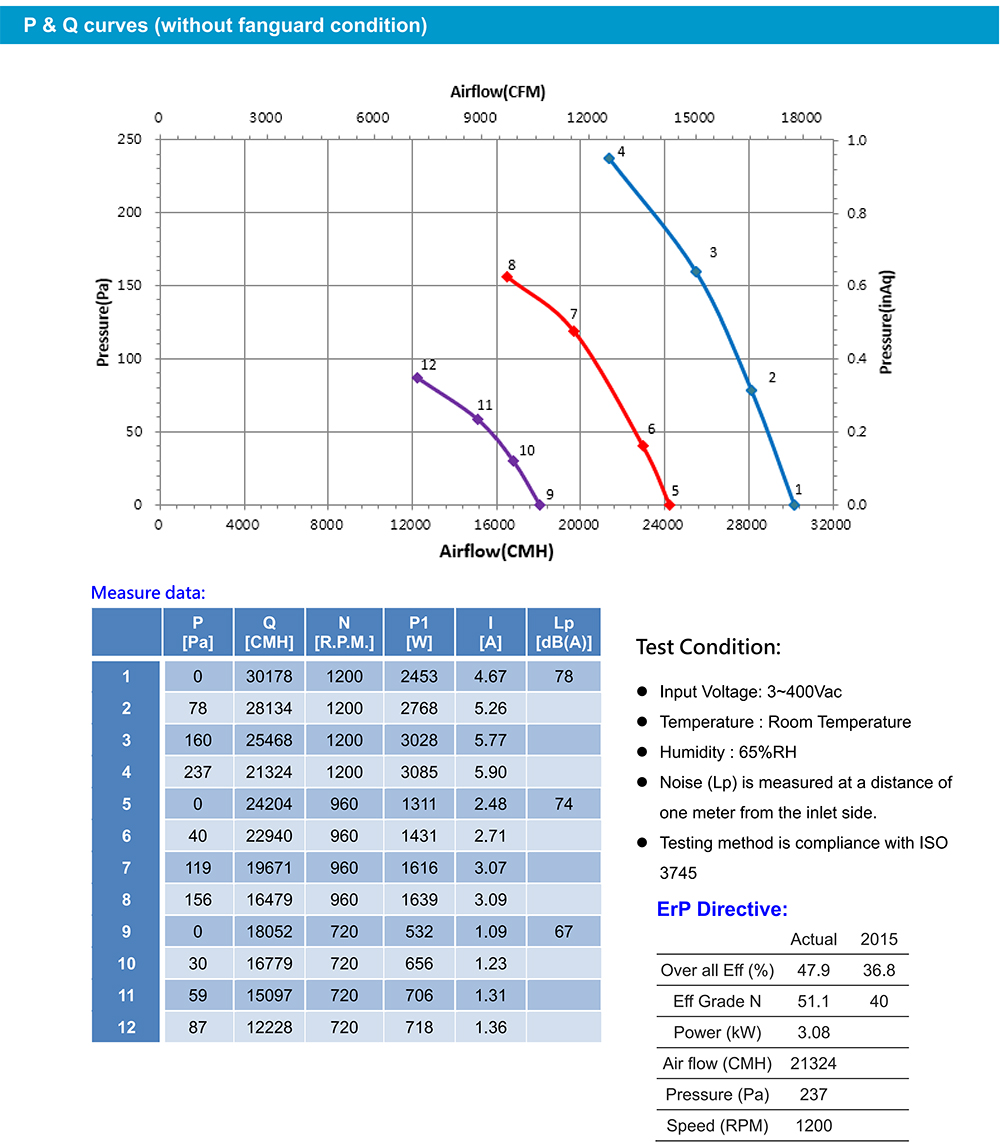

Nominal data

Brand：

DELTA

Part No.：

GTW080PUU26E

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

Max.Air Flow(m³/h)：

30178

Max.Pressure(Pa)：

237

Input Power(W)：

2453

Speed(rpm)：

1200

Noise(db)：

Description

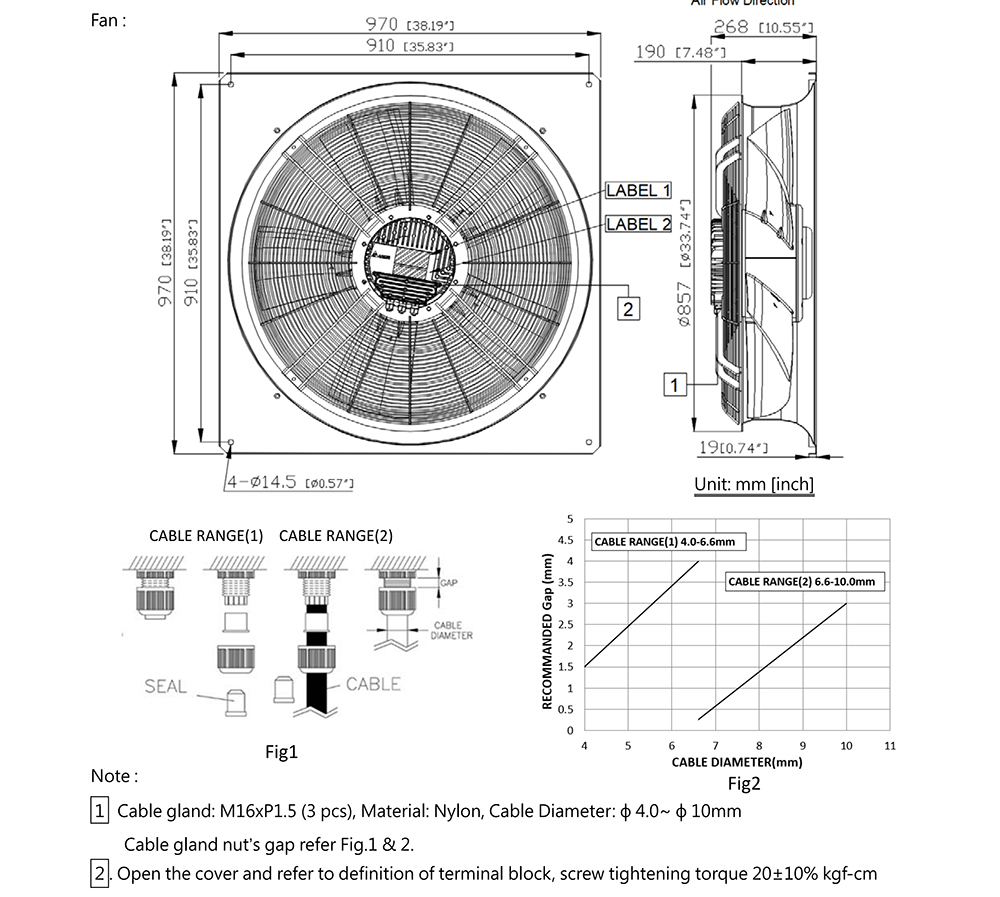

GTW080PUU26E DELTA Specification drawing：
