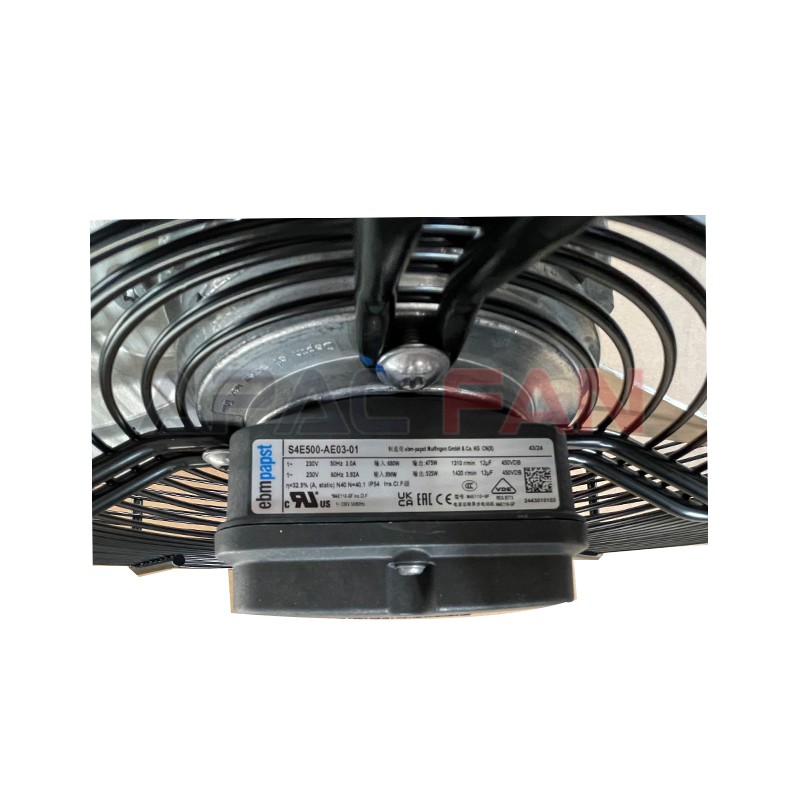

S4E500-AE03-01 ebm-papst Axial Fan
Part No：S4E500-AE03-01
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：500
Max.Air Flow(m³/h)：9800
Max.Pressure(Pa)：100
Input Power(W)：920
Speed(RPM)：1490

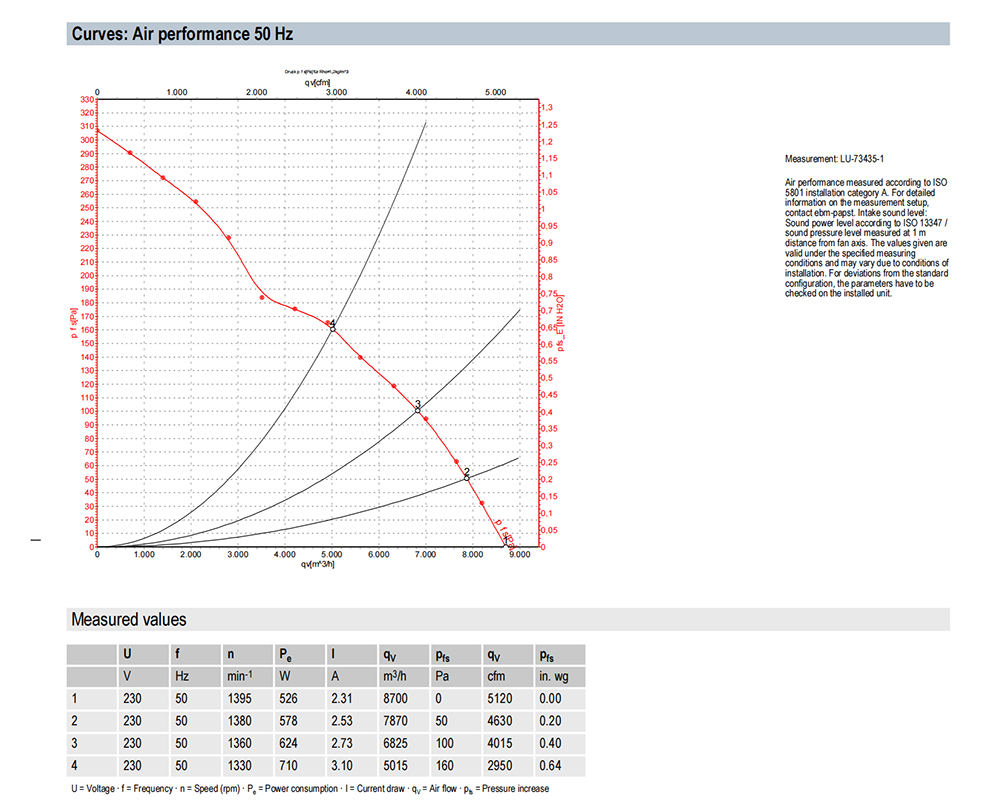

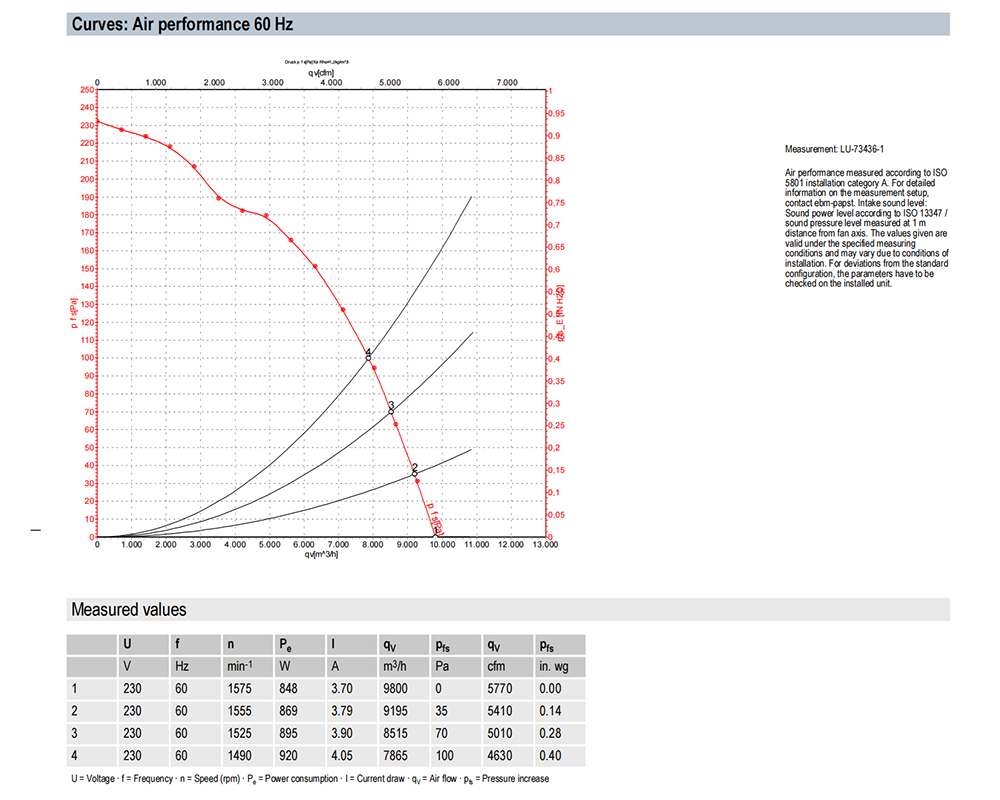

Nominal data
Description

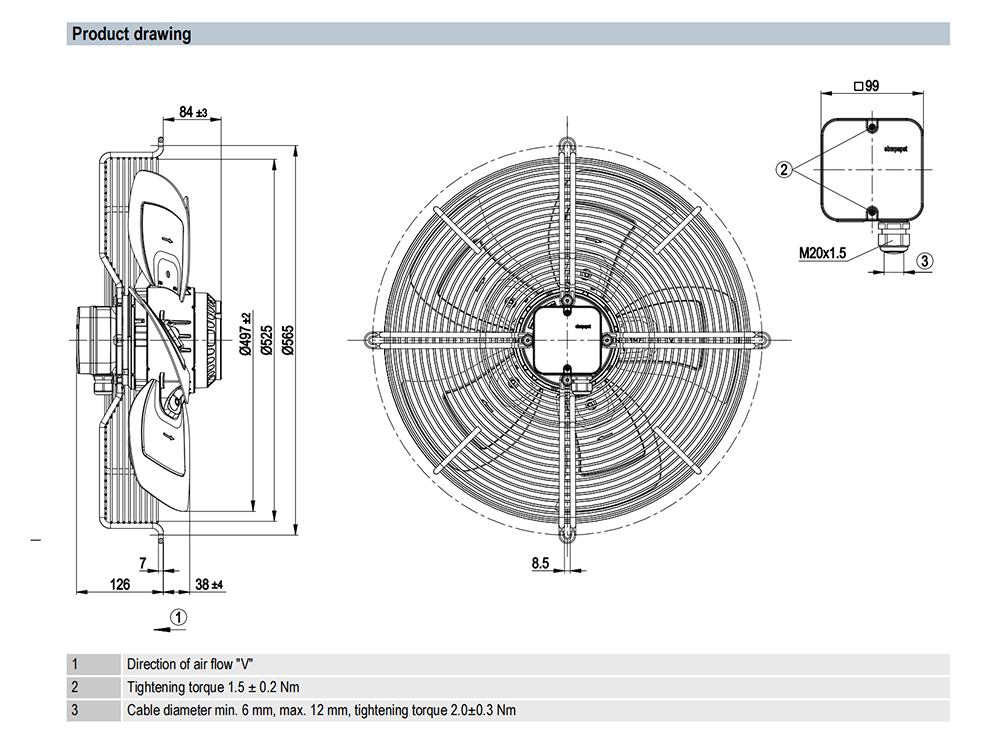

S4E500-AE03-01 Ebm-papst Specification drawing：
Applications
S4E500-AE03-01 can be considered for heat exchangers, condensers, refrigeration, air-conditioning and industrial cooling when the system operating point matches the listed performance.
Selection and Replacement
Because this page already has a clear model identity, replacement selection should focus on the full S4E500-AE03-01 designation, voltage, size, airflow, pressure, power, speed, mounting and connection.
FAQ
Q1. What is the S4E500-AE03-01?
A1. The S4E500-AE03-01 is a ebm-papst ac axial fan. Use the complete model number when requesting a quotation or checking a replacement.
Q2. What should I check before ordering the S4E500-AE03-01?
A2. Check the complete part number, rated voltage, dimensions, airflow and pressure requirements, input power, speed, mounting arrangement and electrical connection against your equipment requirements.
Q3. Can a similar model replace the S4E500-AE03-01?
A3. A similar base model should not automatically be treated as interchangeable. Confirm the full suffix and the technical data of the existing fan before substitution.
Request Product Information
Looking for the ebm-papst S4E500-AE03-01? Send the complete model number, quantity and application requirements to APAC FAN for product and availability information.
