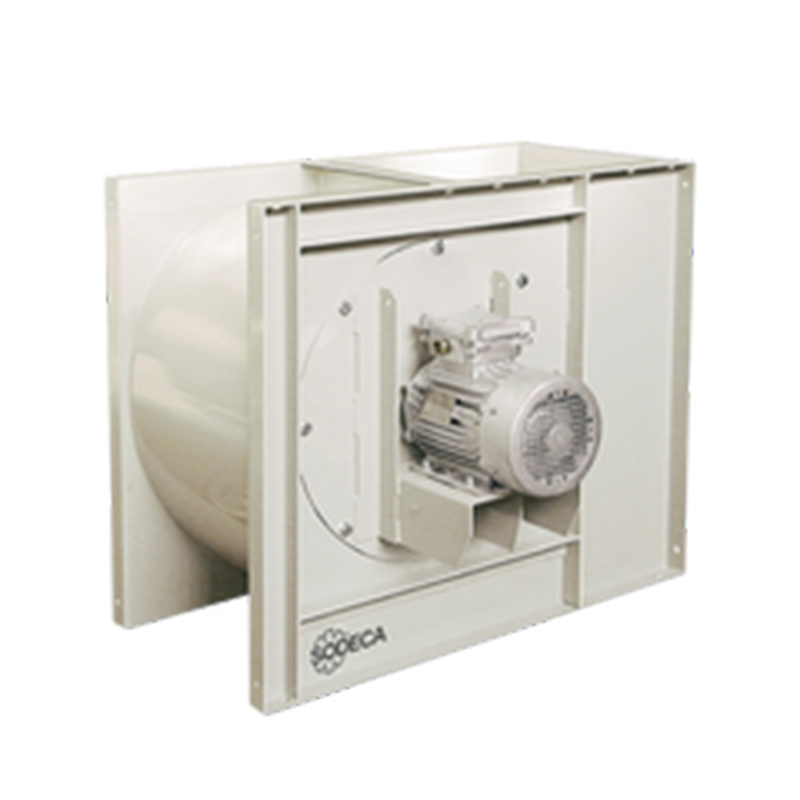

TCR Smoke Extract Fans SODECA
Nominal data
Description
Extremely robust 400 ºC/2h medium pressure single inlet centrifugal extractor fans with backward curved impeller for immersed operation in fire risk zones.
Fan:
• Sheet steel casing.
• Backward curved impeller in very robust sheet steel, with anti-heat paint.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR- 0384.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class H motors for S1 continuous operation and S2 emergency use. With ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
• Maximum temperature of air to be carried: S1 continuous operation -25 ºC +120 ºC. S2 operation, 300 ºC/2h and 400 ºC/2h.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• ATEX certification.
