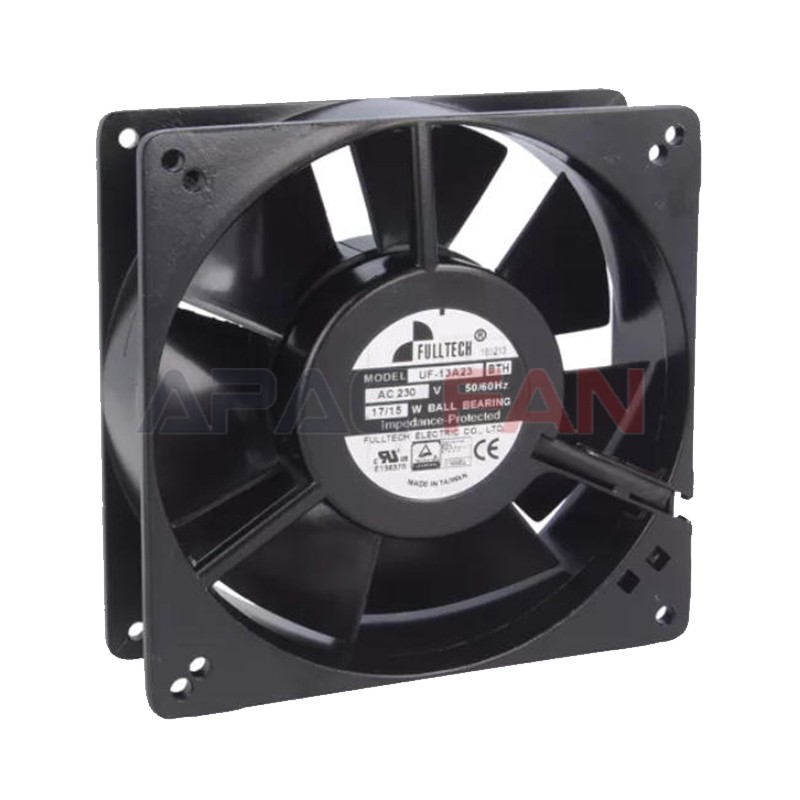

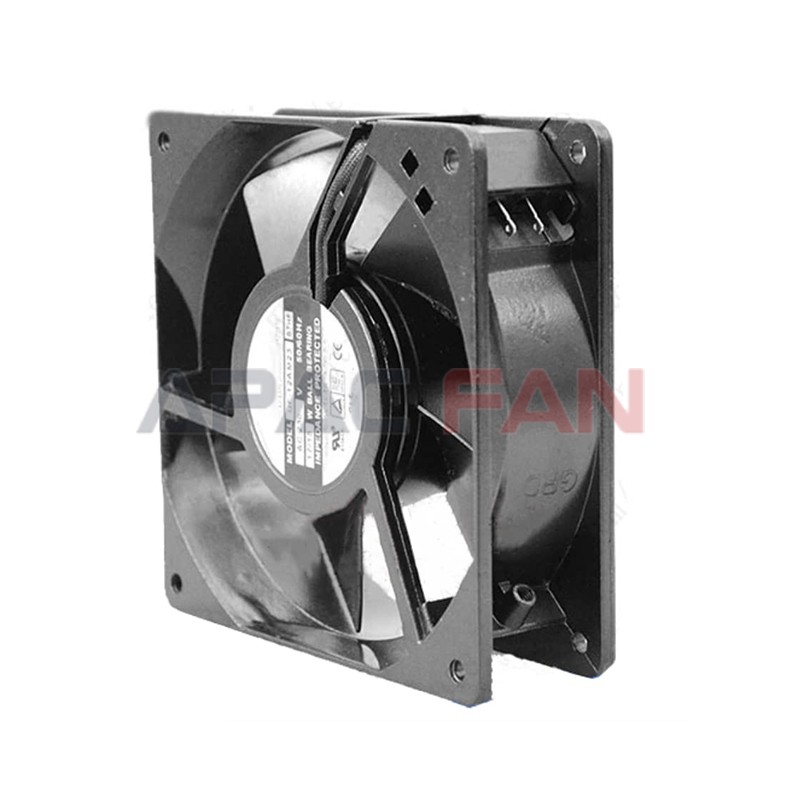

UF13A23BTH FULLTECH Axial fan

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF13A23BTH
Fan Type：Compact Fan
Rated Voltage(V)：230
Size(mm)：127*127*38
Max.Air Flow(m³/h)：204
Input Power(W)：15
Speed(RPM)：3000
Noise(dB)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF13A23BTH

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

127*127*38

Max.Air Flow(m³/h)：

204

Max.Pressure(Pa)：

Input Power(W)：

15

Speed(rpm)：

3000

Noise(db)：

50

Description

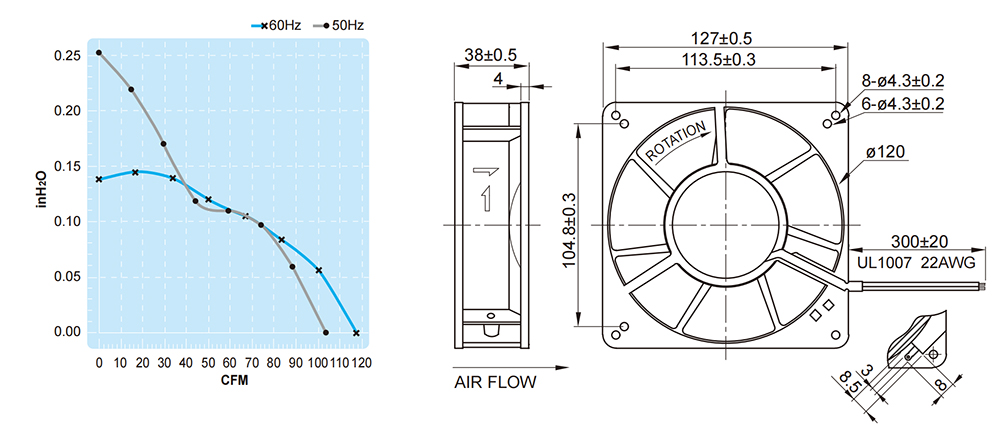

UF13A23BTH FULLTECH Specification drawing：
