FULLTECHUF15KM23BTHF Axial fan Dedicated for Servo Motors and Commercial Baking Equipme

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF15KM23BTHF
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：172*150*55
Max.Air Flow(m³/h)：391
Input Power(W)：42
Speed(RPM)：3250
Noise(dB)：53

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF15KM23BTHF

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

172*150*55

Max.Air Flow(m³/h)：

391

Max.Pressure(Pa)：

Input Power(W)：

42

Speed(rpm)：

3250

Noise(db)：

53

Description

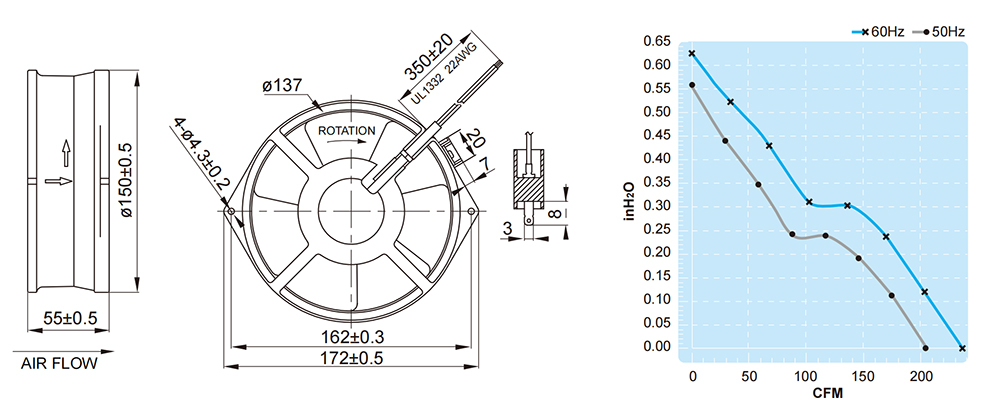

UF15KM23BTHF FULLTECH Specification drawing：
