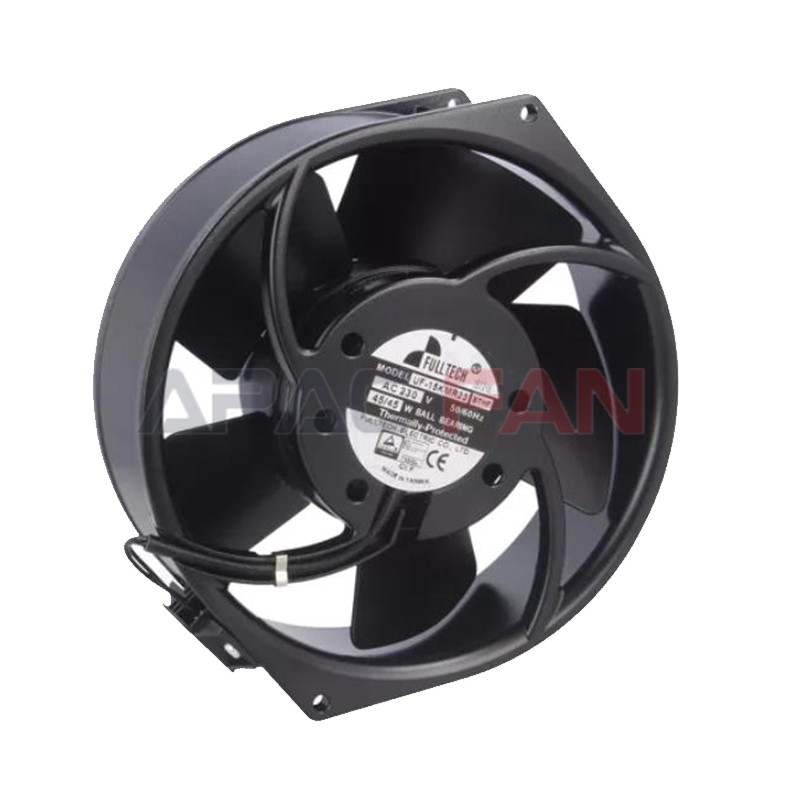

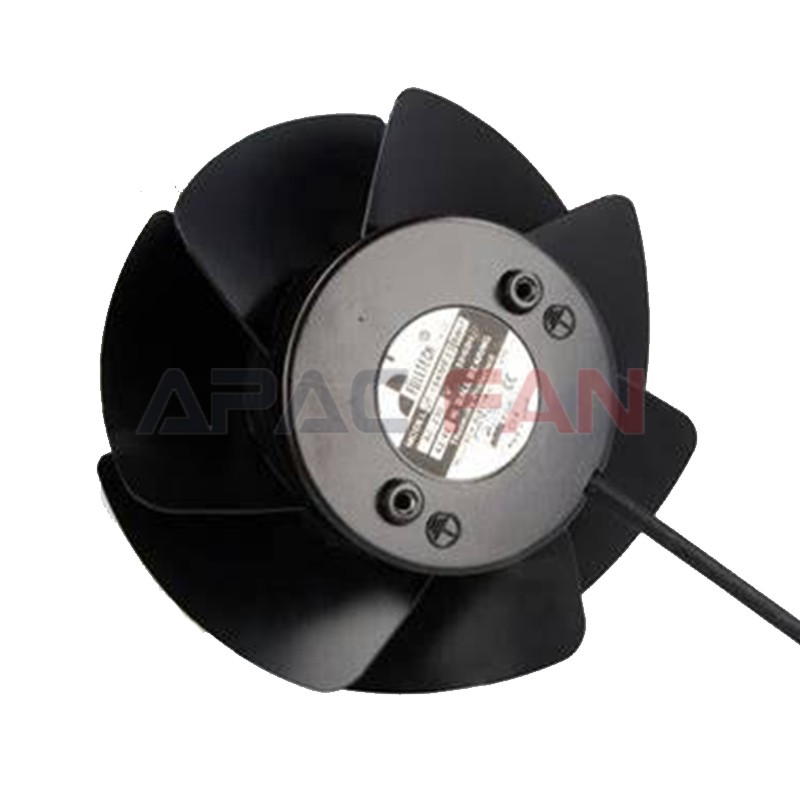

FULLTECH UF15P23BTH Axial Fan Specially Designed for Cabinets

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF15P23BTH
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：172*150*51
Max.Air Flow(m³/h)：332
Input Power(W)：30
Speed(RPM)：3100
Noise(dB)：55

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF15P23BTH

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

172*150*51

Max.Air Flow(m³/h)：

332

Max.Pressure(Pa)：

Input Power(W)：

30

Speed(rpm)：

3100

Noise(db)：

55

Description

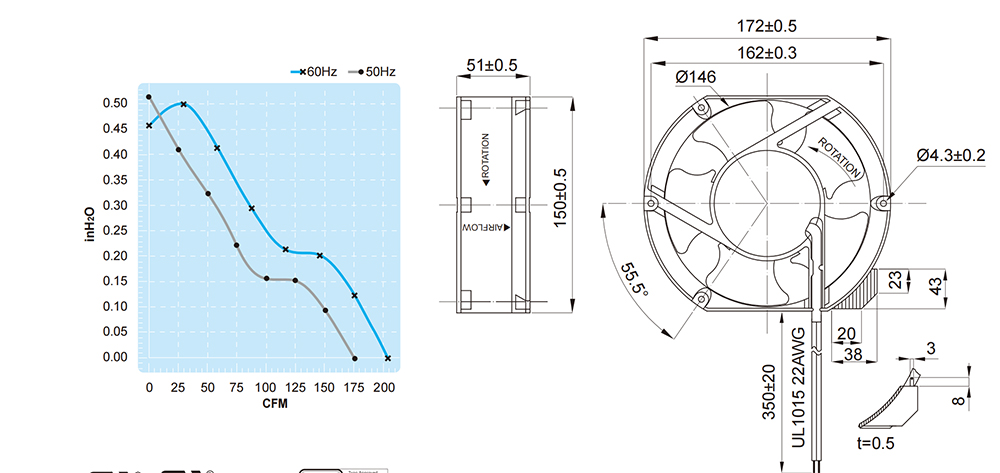

UF15P23BTH FULLTECH Specification drawing：
