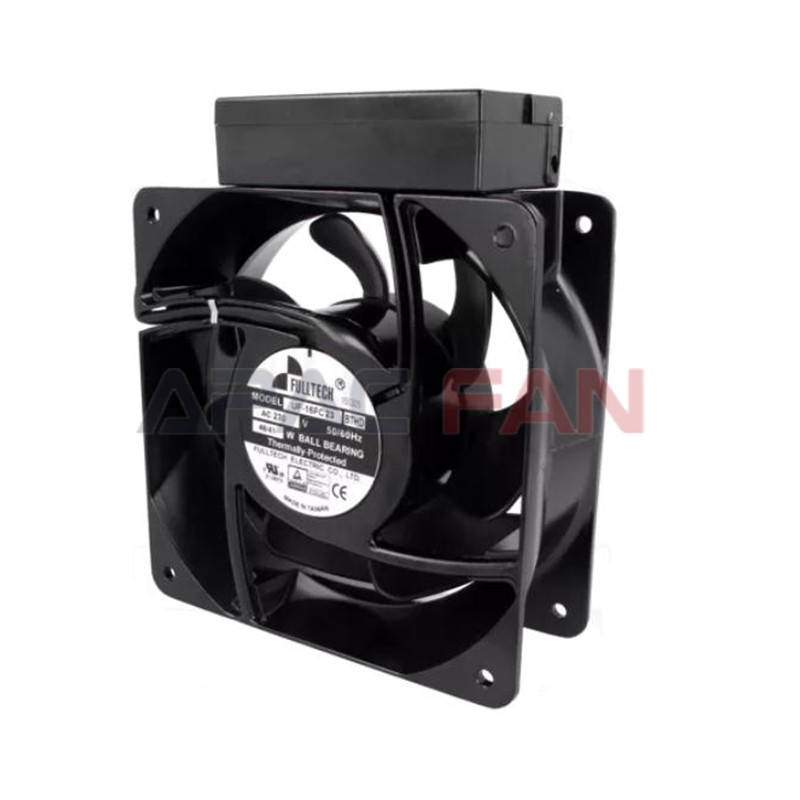

FULLTECH UF16FC23BTHD Axial Fan Specially Used for Air Compressors

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF16FC23BTHD
Fan Type：Compact Fan
Rated Voltage(V)：230
Size(mm)：160*160*62
Max.Air Flow(m³/h)：451
Input Power(W)：41
Speed(RPM)：3400
Noise(dB)：56

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF16FC23BTHD

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

160*160*62

Max.Air Flow(m³/h)：

451

Max.Pressure(Pa)：

Input Power(W)：

41

Speed(rpm)：

3400

Noise(db)：

56

Description

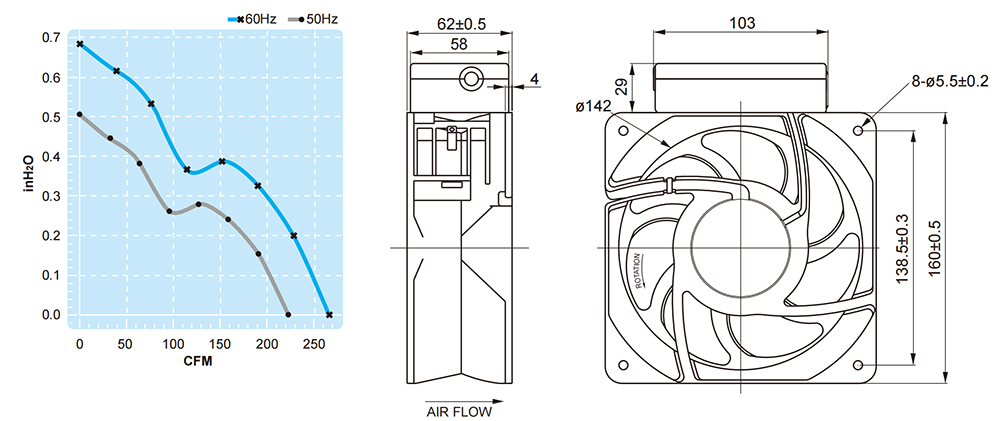

UF16FC23BTHD FULLTECH Specification drawing：
