Fulltech UF180APA23H1C2A Fan Filter Unit for Cleanroom FFU Systems

Brand：

Fulltech

Category：

Centrifugal Fan

Description：

Brand：FULLTECH
Part No：UF180APA23H1C2A
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：φ182.4*84.9
Max.Air Flow(m³/h)：510
Input Power(W)：81
Speed(RPM)：2400
Noise(dB)： 63

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF180APA23H1C2A

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

Max.Air Flow(m³/h)：

510

Max.Pressure(Pa)：

Input Power(W)：

81

Speed(rpm)：

2400

Noise(db)：

63

Description

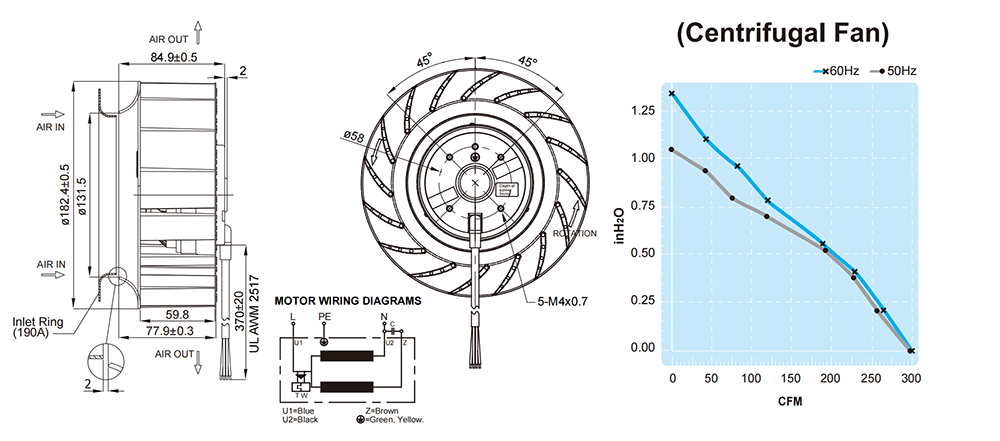

UF180APA23H1C2A FULLTECH Specification drawing：
