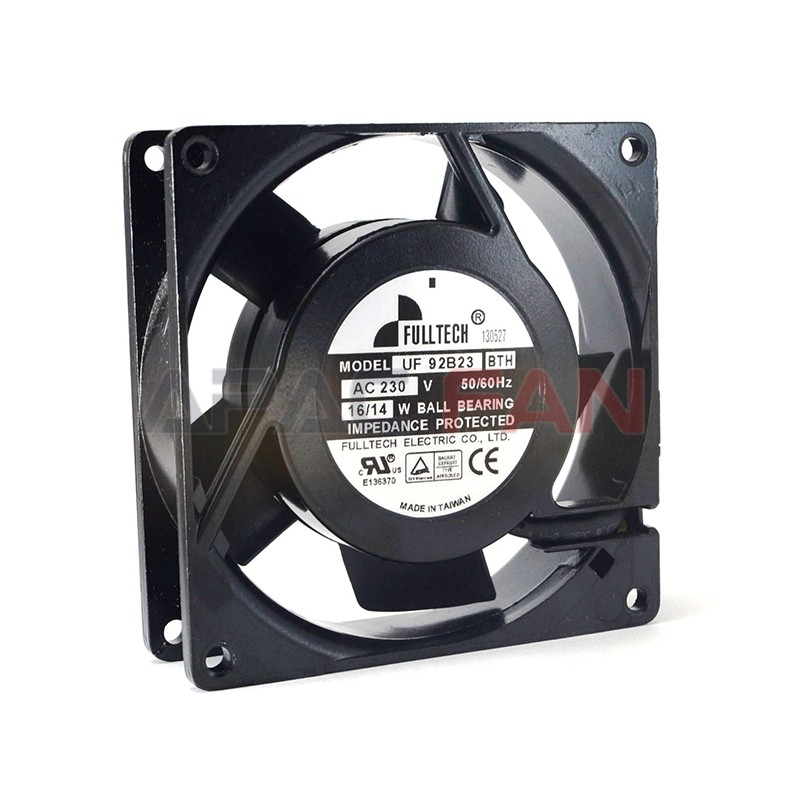

Fulltech UF92B23BTH Cooling Fan for Commercial Baking Equipment

Brand：

Fulltech

Category：

Compact Fan

Description：

Brand：FULLTECH
Part No：UF92B23BTH
Fan Type：Compact Fan
Rated Voltage(V)：230
Size(mm)：92*92*25
Max.Air Flow(m³/h)：68
Input Power(W)：14
Speed(RPM)：3000
Noise(dB)：36

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF92B23BTH

Fan Type：

Compact Fan

Rated Voltage(V)：

230

Size(mm)：

92*92*25

Max.Air Flow(m³/h)：

68

Max.Pressure(Pa)：

Input Power(W)：

14

Speed(rpm)：

3000

Noise(db)：

36

Description

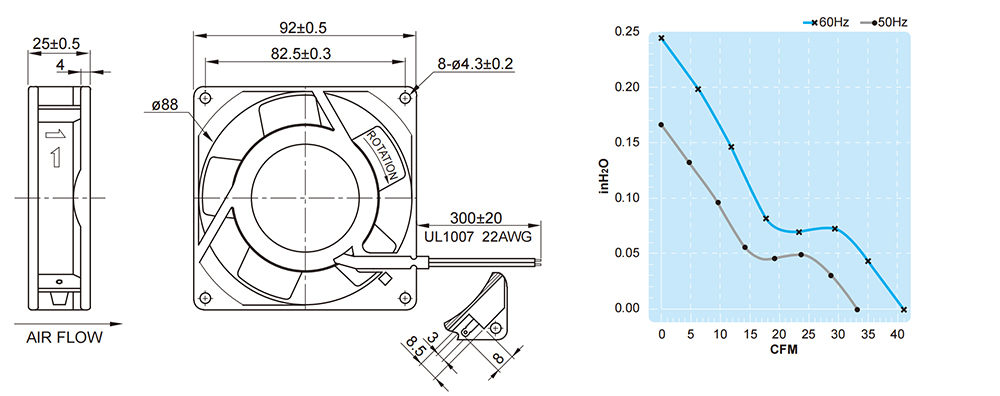

UF92B23BTH FULLTECH Specification drawing：
