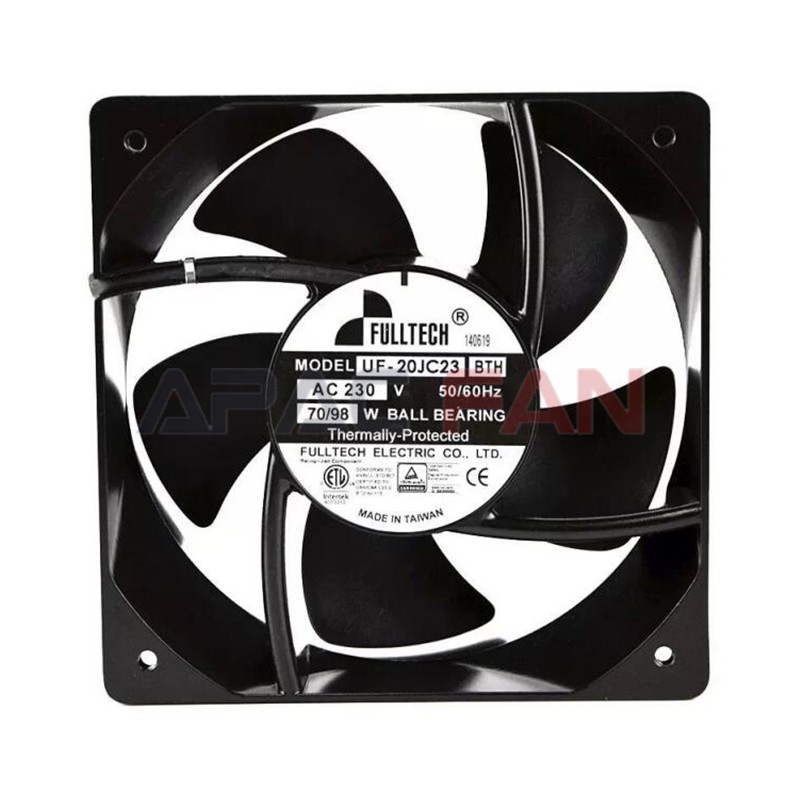

FULLTECH UF20JC23BTH Axial Fan Suitable for Power Distribution Cabinets

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF20JC23BTH
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：205*205*90
Max.Air Flow(m³/h)：1156
Input Power(W)：98
Speed(RPM)：3200
Noise(dB)：71

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF20JC23BTH

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

Max.Air Flow(m³/h)：

1156

Max.Pressure(Pa)：

Input Power(W)：

98

Speed(rpm)：

3200

Noise(db)：

71

Description

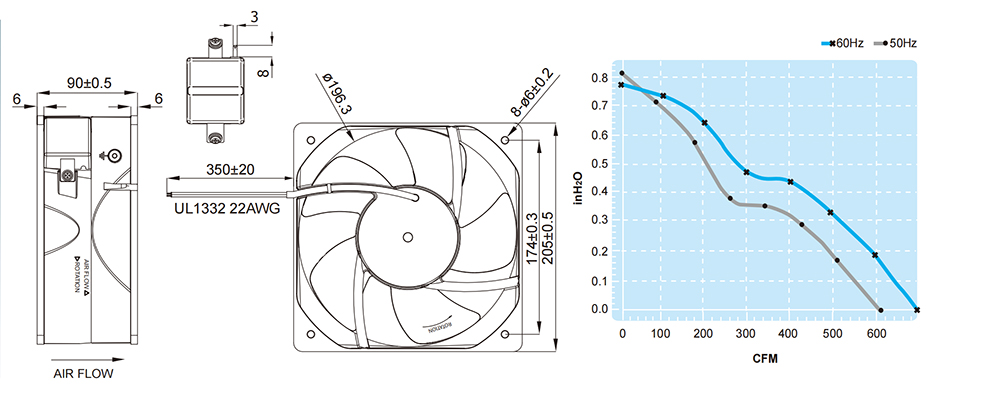

UF20JC23BTH FULLTECH Specification drawing：
