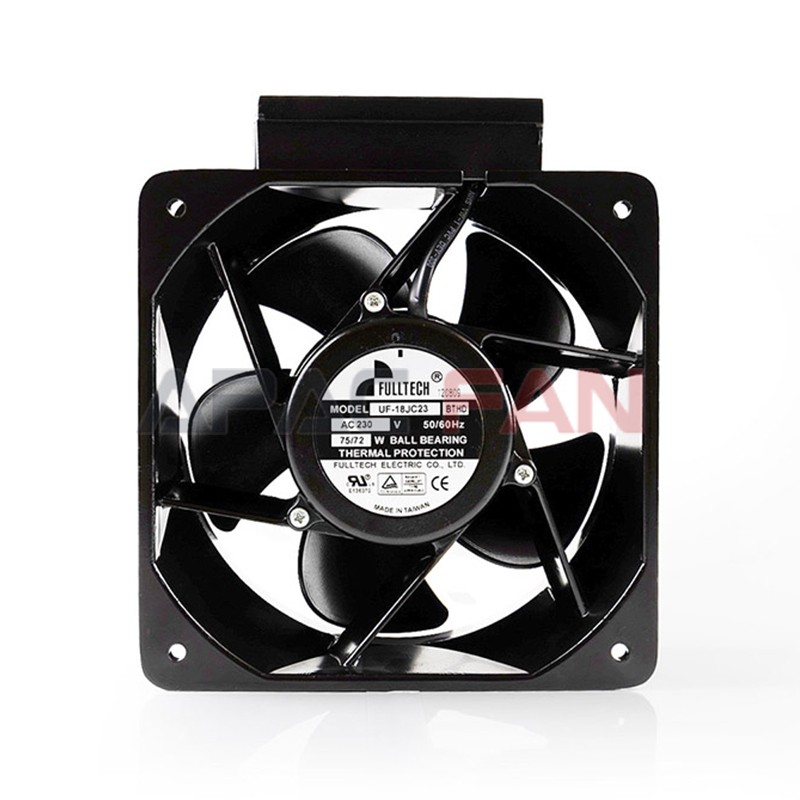

FULLTECH UF18JC23BTHD Axial Fan

Brand：

Fulltech

Category：

Axial Fan

Description：

Brand：FULLTECH
Part No：UF18JC23BTHD
Fan Type：Axial Fan
Rated Voltage(V)：230
Size(mm)：180*180*90
Max.Air Flow(m³/h)：782
Input Power(W)：72
Speed(RPM)：3400
Noise(dB)：59

00852-56261528 info@apacfan.com

Nominal data

Brand：

Fulltech

Part No.：

UF18JC23BTHD

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

Max.Air Flow(m³/h)：

782

Max.Pressure(Pa)：

Input Power(W)：

72

Speed(rpm)：

3400

Noise(db)：

59

Description

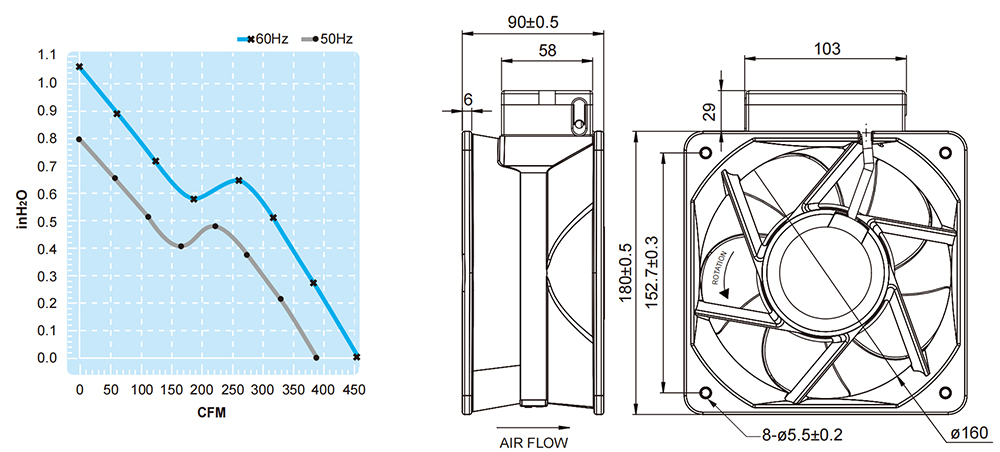

UF18JC23BTHD FULLTECH Specification drawing：
