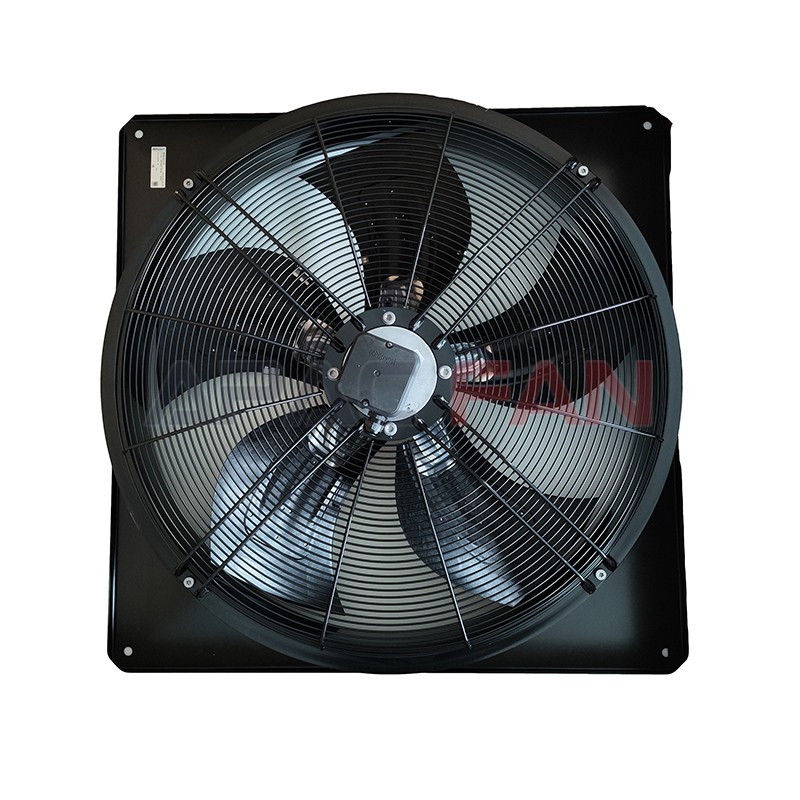

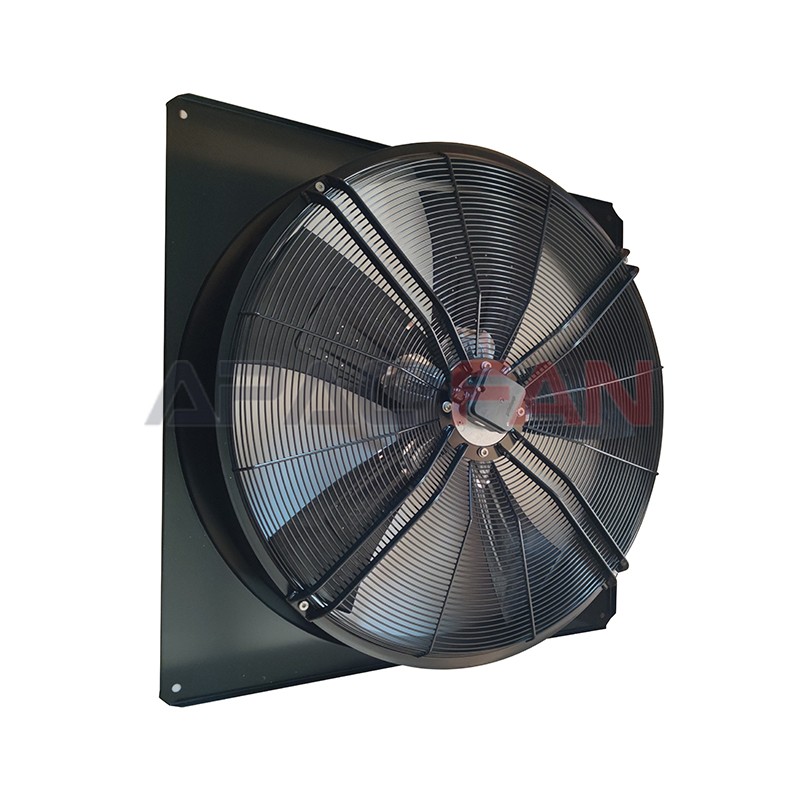

ebm-papst W6D910-GE01-01 Large Refrigeration Unit Condenser Fan | Reliable Heat Exhaust
Brand：
ebmpapst
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
W6D910-GE01-01
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
910
Max.Air Flow(m³/h)：
27800
Max.Pressure(Pa)：
145
Input Power(W)：
1840
Speed(rpm)：
935
Noise(db)：
79
Description

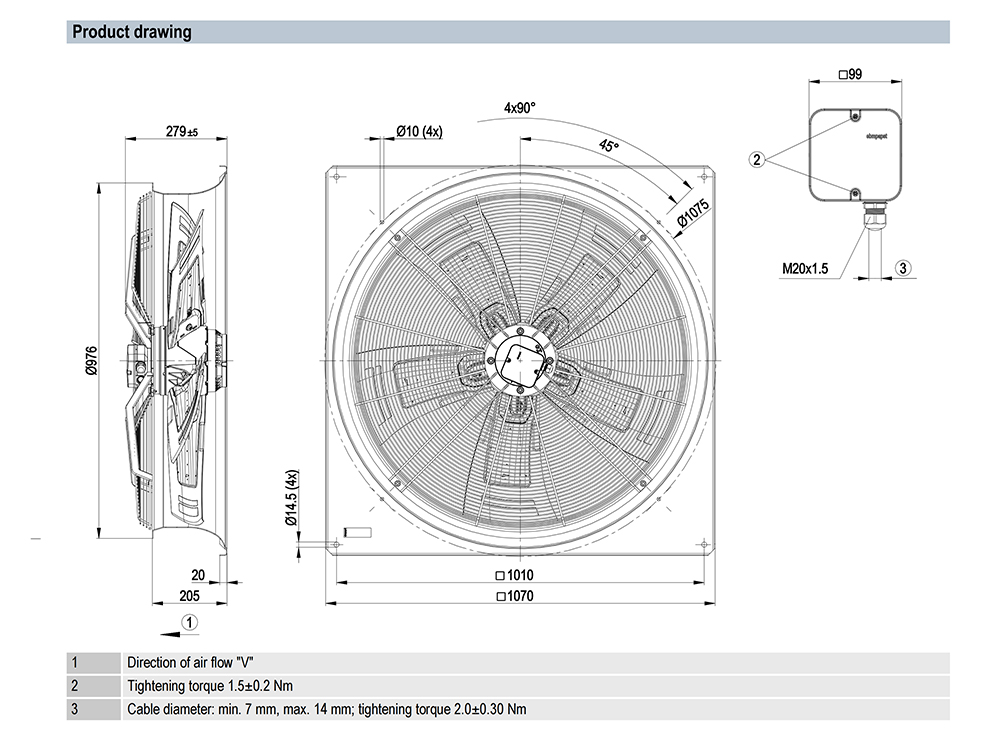

W6D910-GE01-01 Ebm-papst Specification drawing：
