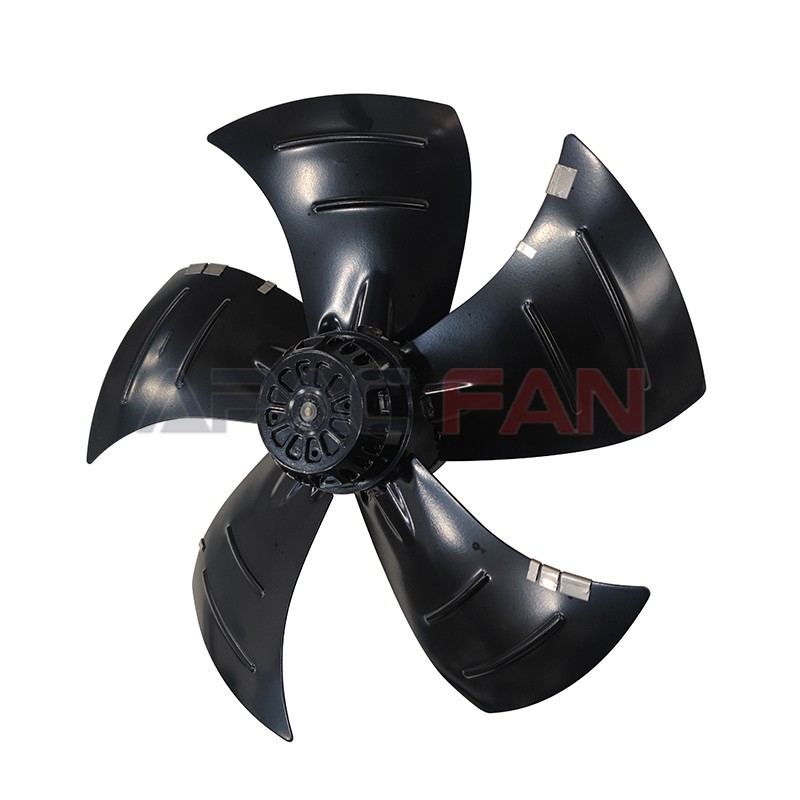

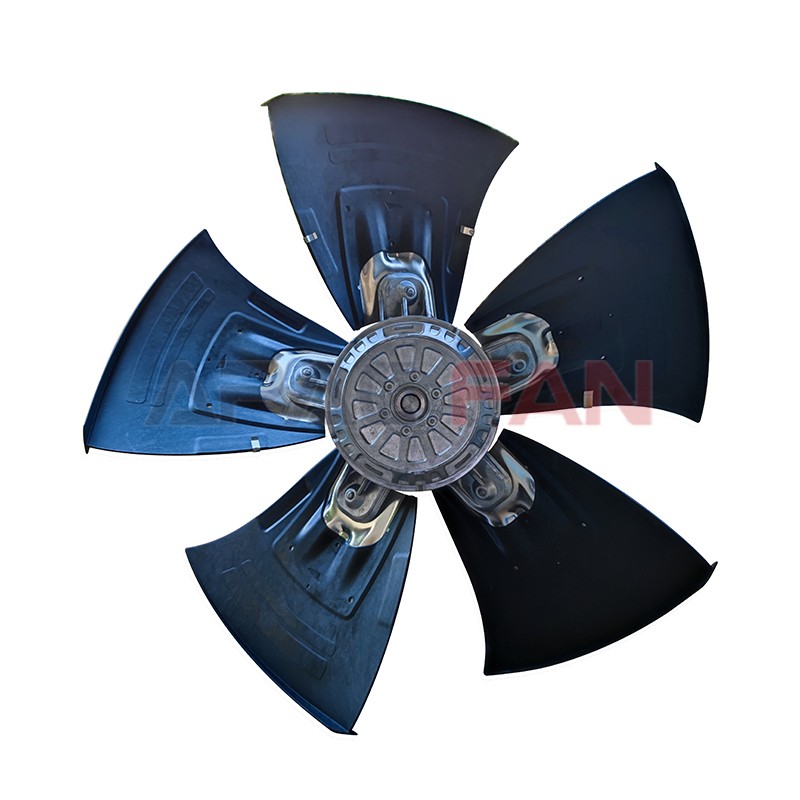

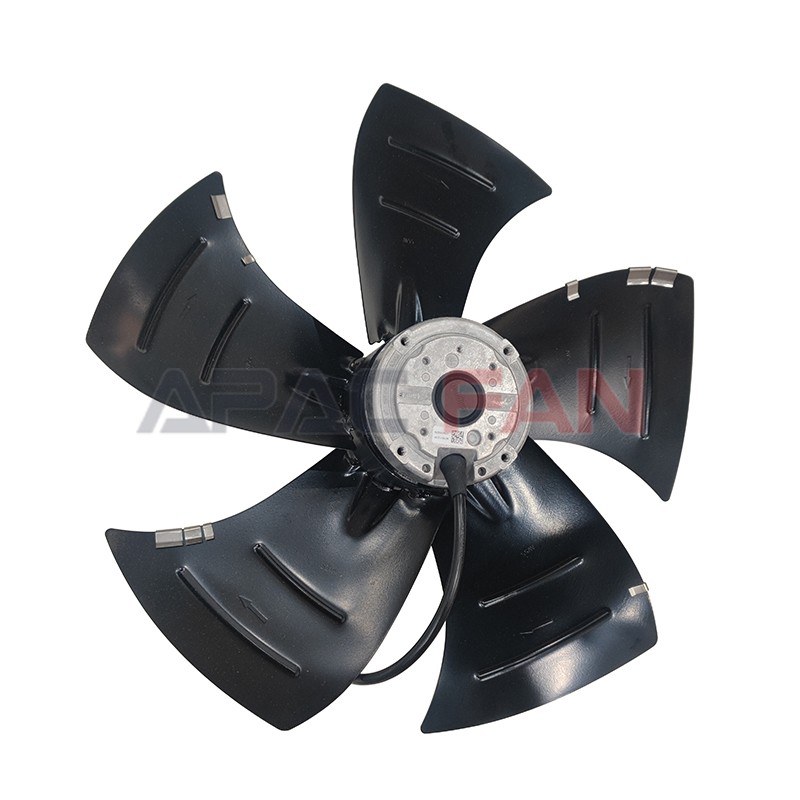

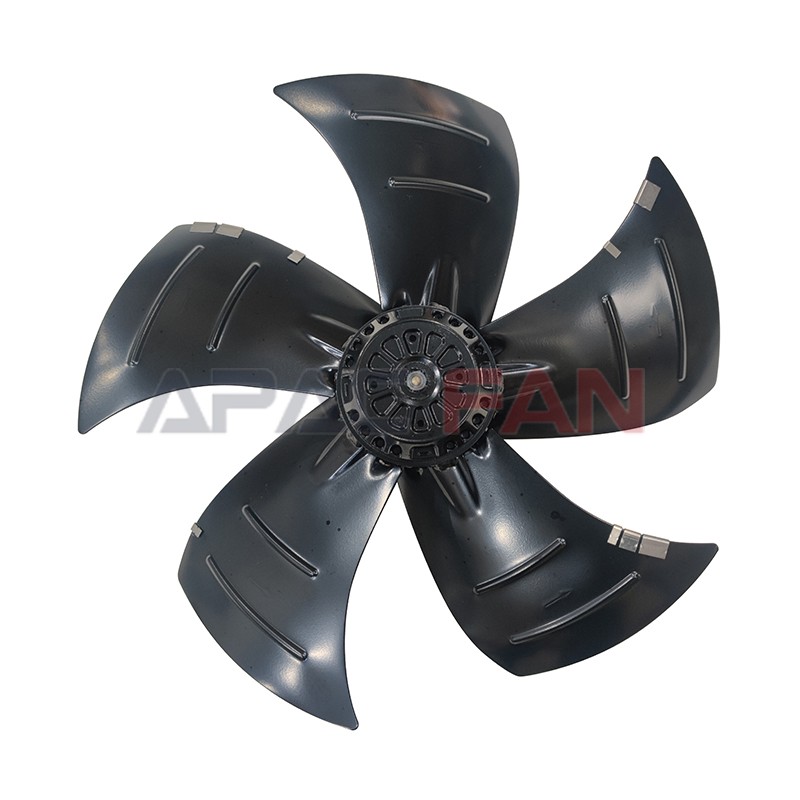

A4D420-AP02-01 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

A4D420AP0201.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：A4D420-AP02-01
Fan Type：Axial Fan
Rated Voltage(V)：400
Size(mm)：420
Max.Air Flow(m³/h)：5635
Max.Pressure(Pa)：120
Input Power(W)：235
Speed(RPM)：1660

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A4D420-AP02-01

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

420

Max.Air Flow(m³/h)：

5635

Max.Pressure(Pa)：

120

Input Power(W)：

235

Speed(rpm)：

1660

Noise(db)：

Description

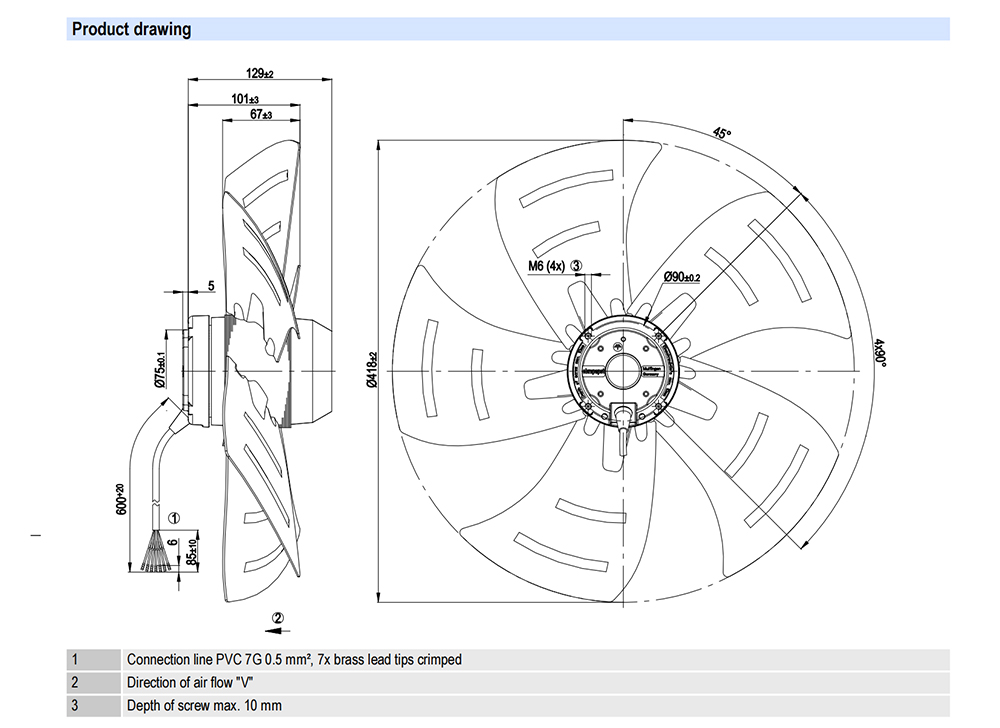

A4D420-AP02-01 Ebm-papst Specification drawing：
