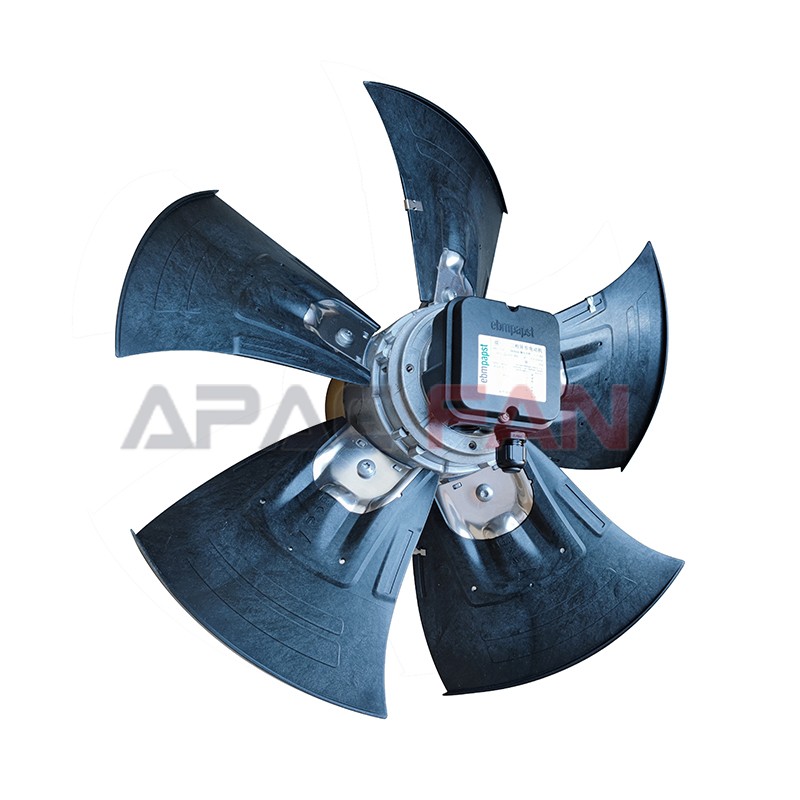

A4D500-AM03-02

Brand：

ebmpapst

Document：

A4D500AM0302.PDF

Category：

Axial Fan

Description：

100% Genuine ebmpapst A4D500-AM03-02 axial fan, 460V, 10920m³/h airflow, 138Pa pressure and powerful industrial ventilation performance. In stock for rapid worldwide shipment.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A4D500-AM03-02

Fan Type：

Axial Fan

Rated Voltage(V)：

460

Size(mm)：

500

Max.Air Flow(m³/h)：

10920

Max.Pressure(Pa)：

138

Input Power(W)：

1060

Speed(rpm)：

1640

Noise(db)：

Description

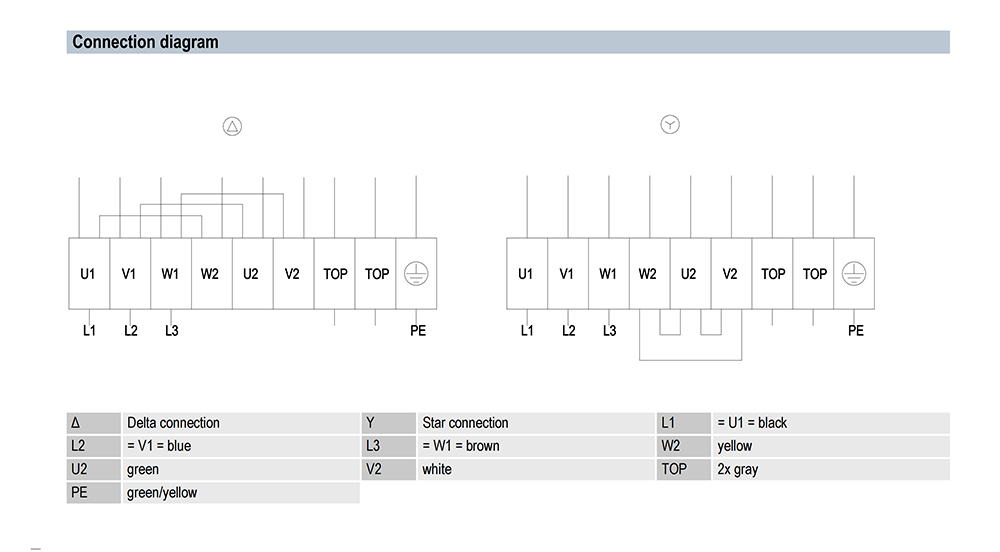

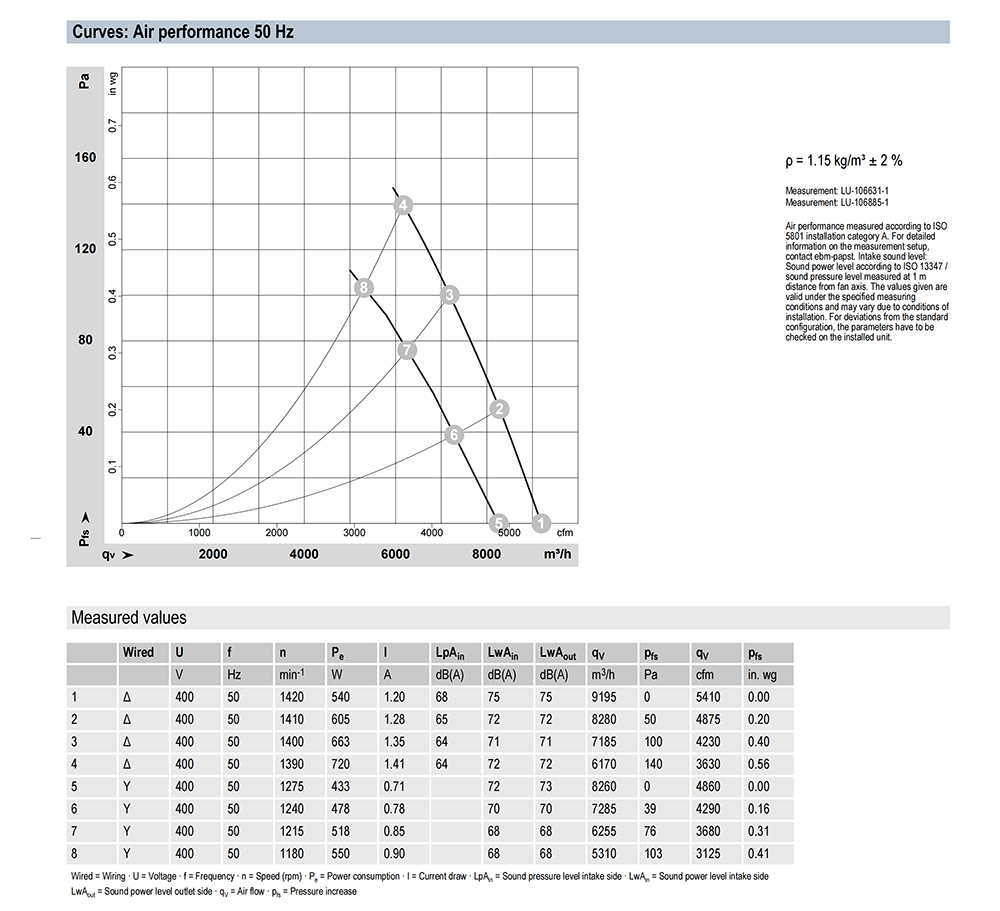

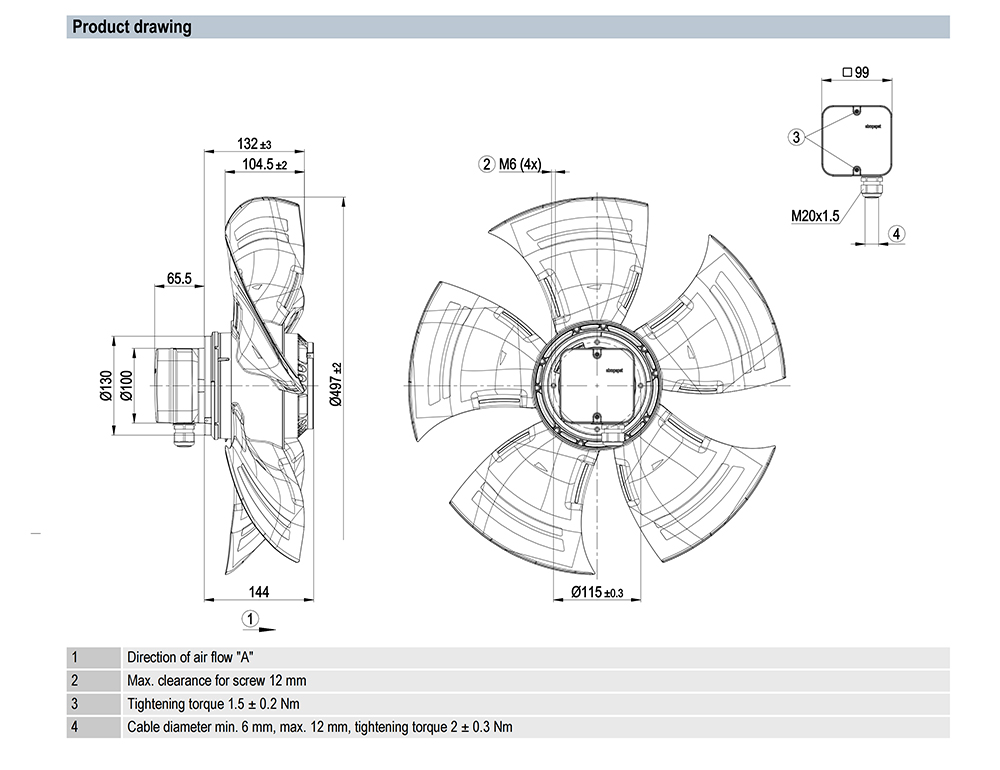

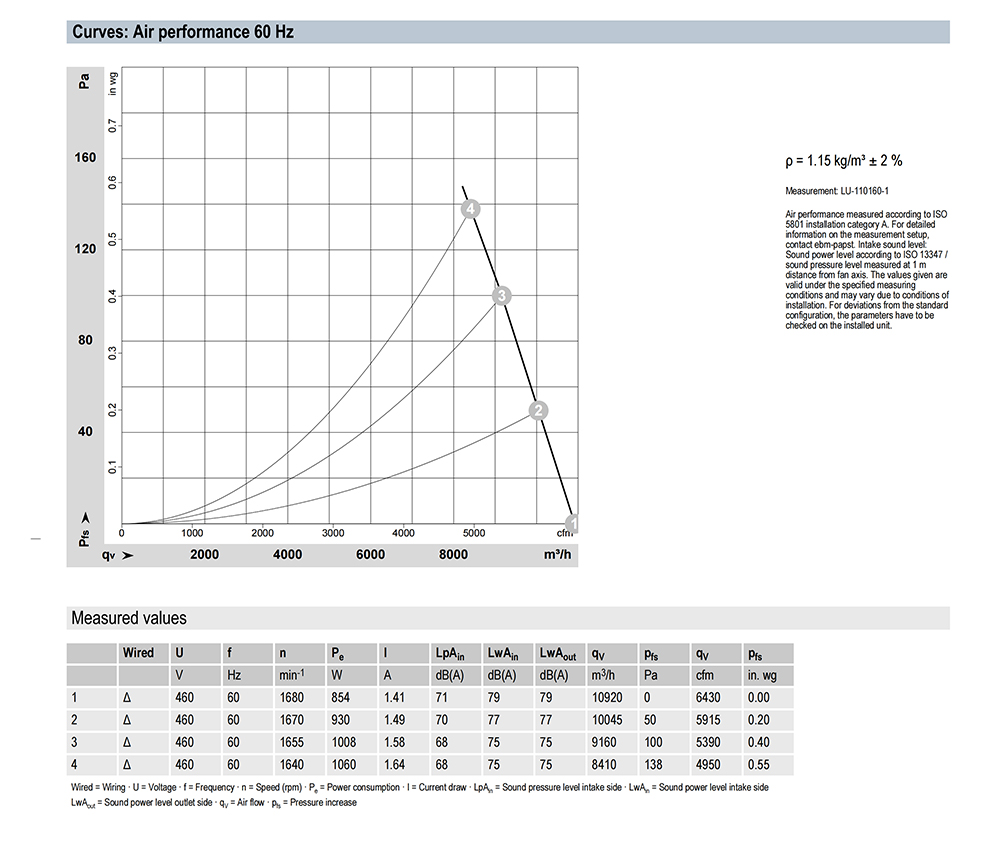

A4D500-AM03-02 Ebm-papst Specification Drawing：
