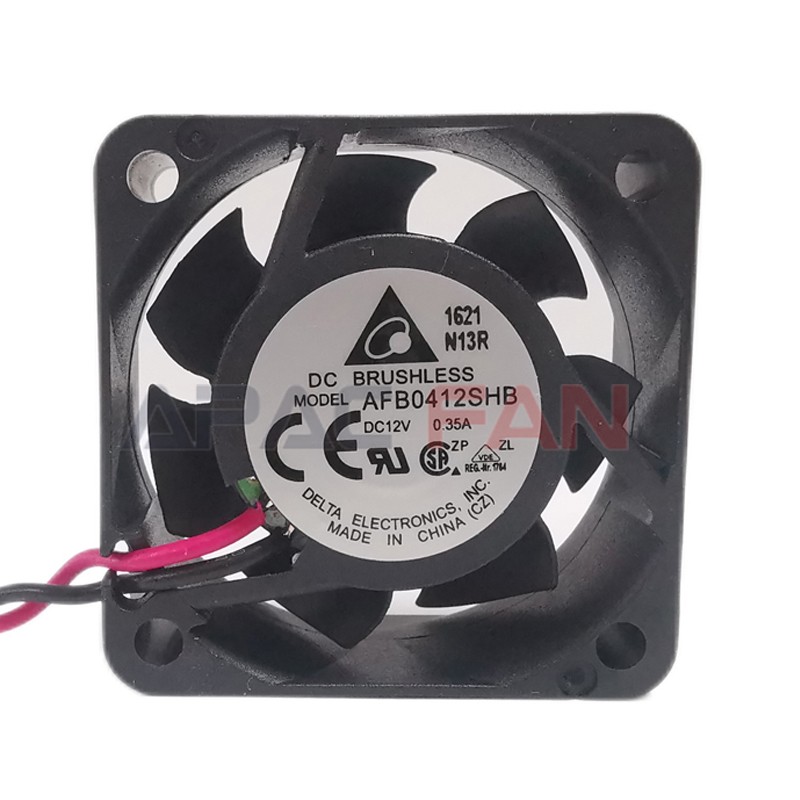

AFB0412SHB DC Axial Cooling Fan
Brand：
ebmpapst
Category：
Axial Fan
Description：
Brand：Delta
Part No：AFB0412SHB
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：40*40*15
Max.Air Flow(m³/h)：8.7
Max.Pressure(Pa)：16
Input Power(W)：3
Speed(RPM)：11000
Noise(dB)：41.5
Part No：AFB0412SHB
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：40*40*15
Max.Air Flow(m³/h)：8.7
Max.Pressure(Pa)：16
Input Power(W)：3
Speed(RPM)：11000
Noise(dB)：41.5
Nominal data
Brand：
ebmpapst
Part No.：
AFB0412SHB
Fan Type：
Axial Fan
Rated Voltage(V)：
12
Size(mm)：
40*40*15
Max.Air Flow(m³/h)：
9
Max.Pressure(Pa)：
16
Input Power(W)：
3
Speed(rpm)：
11000
Noise(db)：
41.5
Description

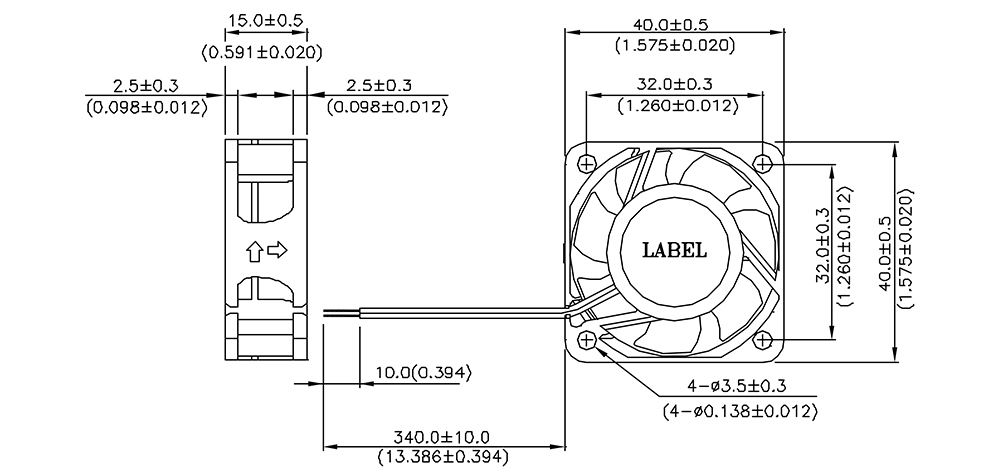

AFB0412SHB DELTA Specification drawing：
