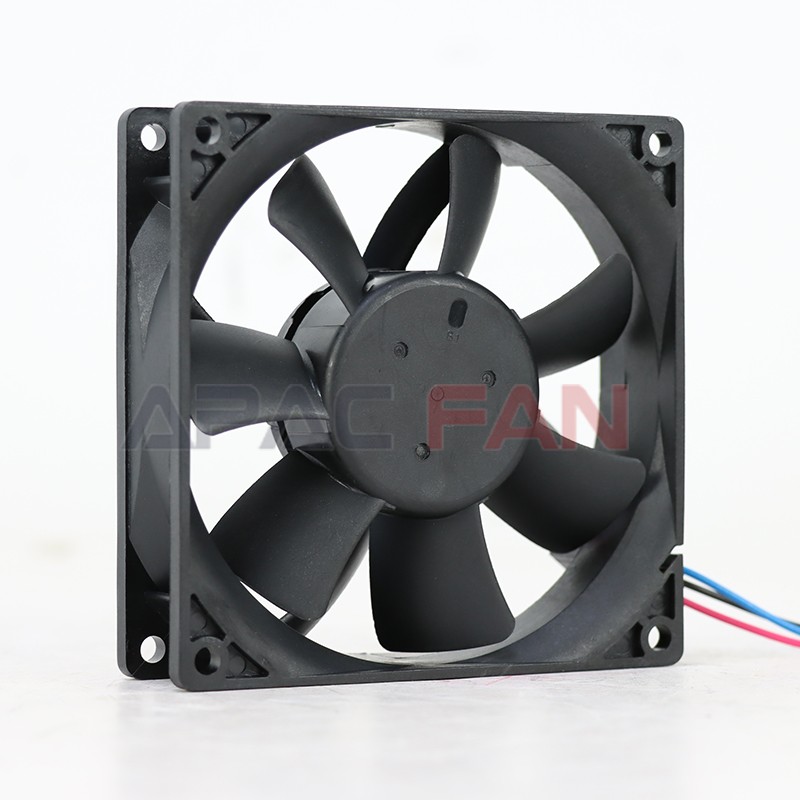

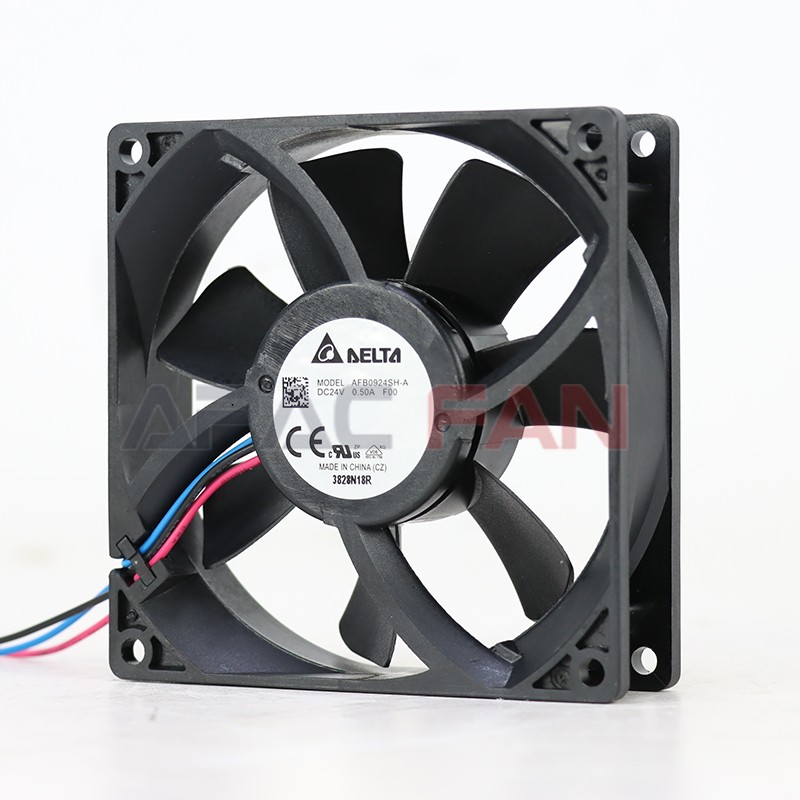

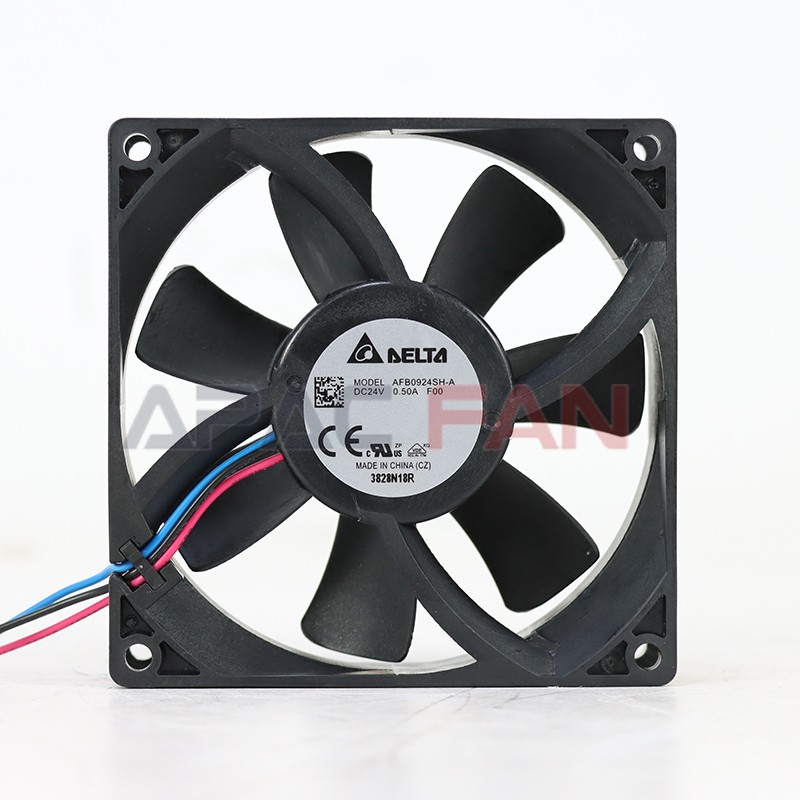

AFB0924SH-A
Brand：
DELTA
Category：
Axial Fan
Description：
Brand：Delta
Part No：AFB0924SH-A
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：92*92*25
Max.Air Flow(m³/h)：60.3
Max.Pressure(Pa)：13.5
Input Power(W)：9.6
Speed(RPM)：4800
Noise(dB)：53
Part No：AFB0924SH-A
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：92*92*25
Max.Air Flow(m³/h)：60.3
Max.Pressure(Pa)：13.5
Input Power(W)：9.6
Speed(RPM)：4800
Noise(dB)：53
Nominal data
Brand：
DELTA
Part No.：
AFB0924SH-A
Fan Type：
Axial Fan
Rated Voltage(V)：
24
Size(mm)：
92*92*25
Max.Air Flow(m³/h)：
60
Max.Pressure(Pa)：
13.5
Input Power(W)：
9.6
Speed(rpm)：
4800
Noise(db)：
53
Description

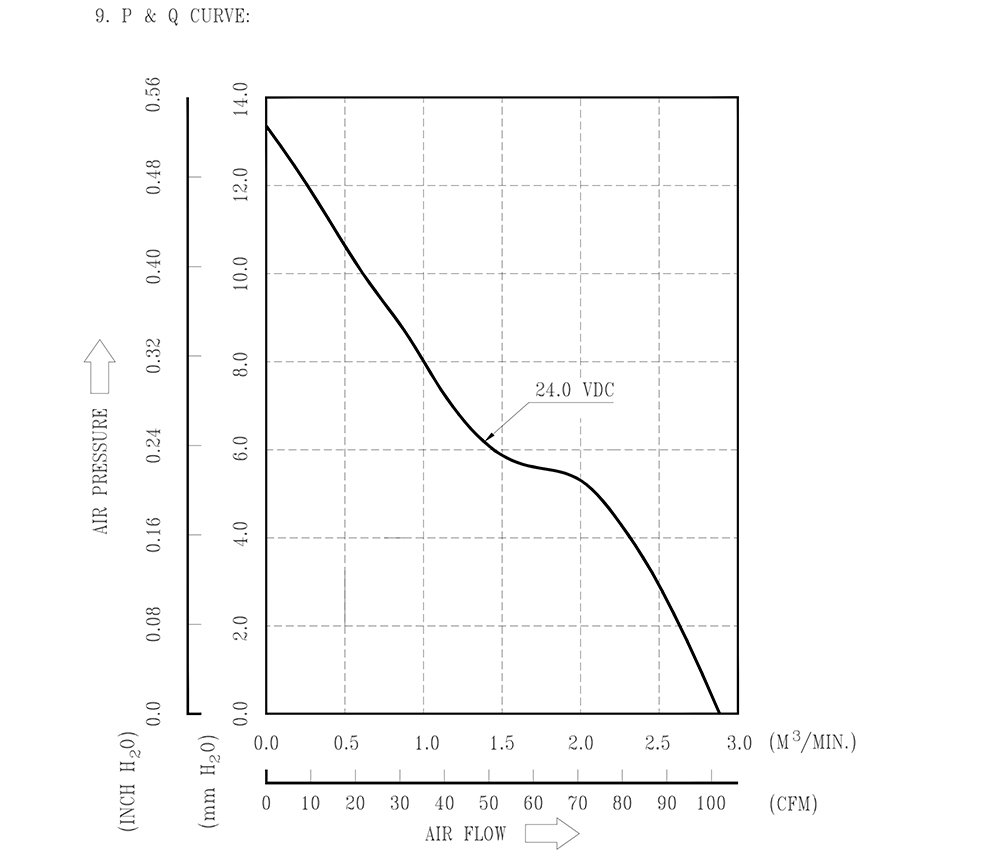

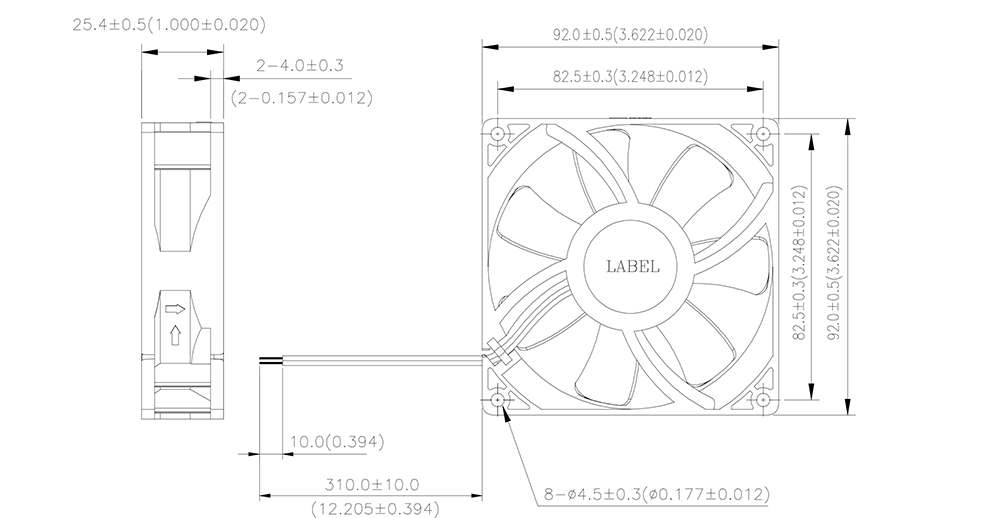

AFB0924SH-A DELTA Specification drawing：
