FN050-VDQ.4I.V7P1

Brand：

ZIEHL-ABEGG

Category：

Axial Fan

Description：

Type: Axial fan
Air output (m³/h): 95000
Speed (RPM): 1340
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

FN050-VDQ.4I.V7P1

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

500

Max.Air Flow(m³/h)：

95000

Max.Pressure(Pa)：

280

Input Power(W)：

840

Speed(rpm)：

1340

Noise(dB)：

Description

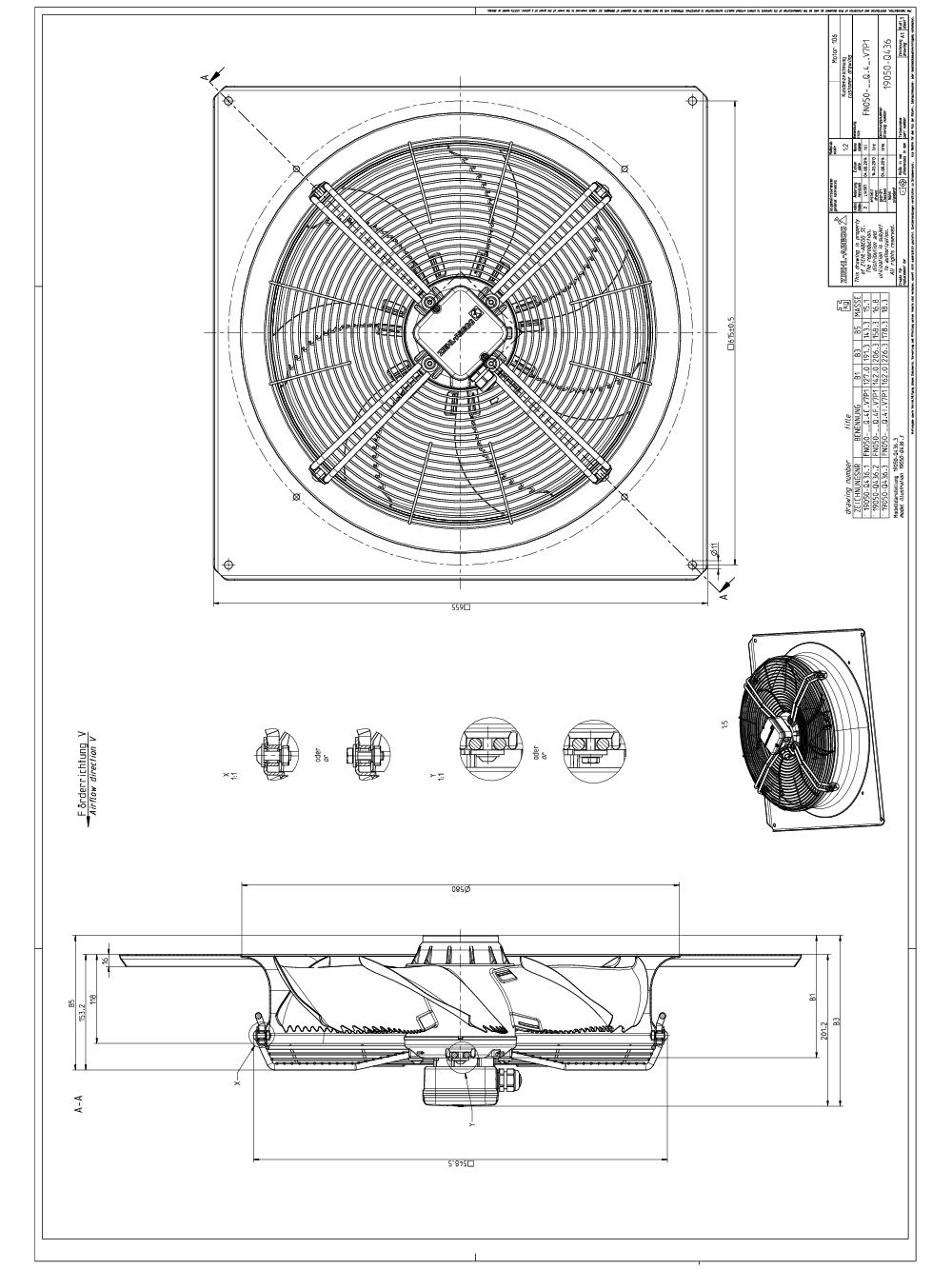

FN050-VDQ.4I.V7P1 Ziehl-Abegg Specification Drawing：

Applications

FN050-VDQ.4I.V7P1 can be considered for air-conditioning, refrigeration, condenser and industrial cooling equipment when its airflow, pressure, voltage and installation requirements match the system design.

Selection and Replacement

For replacement, confirm the full FN050-VDQ.4I.V7P1 designation and compare voltage, size, airflow, pressure, power, speed and mounting details. Do not select a replacement based only on the FN050 family name.

FAQ

Q1. What is the FN050-VDQ.4I.V7P1?

A1. The FN050-VDQ.4I.V7P1 is a ZIEHL-ABEGG axial fan. Use the complete model number when requesting a quotation or checking a replacement.

Q2. What should I check before ordering the FN050-VDQ.4I.V7P1?

A2. Check the complete part number, rated voltage, dimensions, airflow and pressure requirements, input power, speed, mounting arrangement and electrical connection against your equipment requirements.

Q3. Can a similar model replace the FN050-VDQ.4I.V7P1?

A3. A similar base model should not automatically be treated as interchangeable. Confirm the full suffix and the technical data of the existing fan before substitution.

Request Product Information

Looking for the ZIEHL-ABEGG FN050-VDQ.4I.V7P1? Send the complete model number, quantity and application requirements to APAC FAN for product and availability information.
