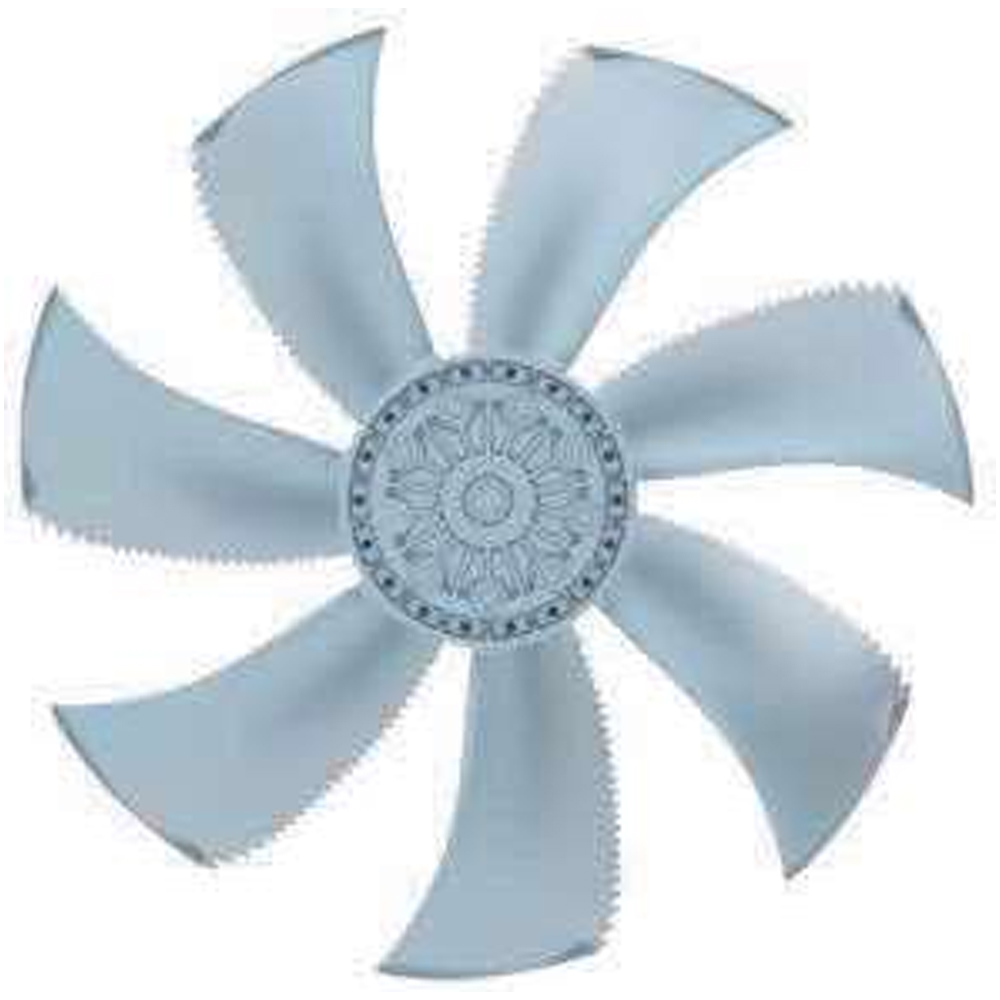

FN063-4DQ.6N.V7P6

Brand：

ZIEHL-ABEGG

Category：

Axial Fan

Description：

Type: Axial fan
Air output (m³/h): 17000
Speed (RPM): 1640
Min. operating temperature: -40°C
IP54 protection
Aluminium rotor and blades

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

FN063-4DQ.6N.V7P6

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

630

Max.Air Flow(m³/h)：

17000

Max.Pressure(Pa)：

252

Input Power(W)：

2900

Speed(rpm)：

1640

Noise(dB)：

Description

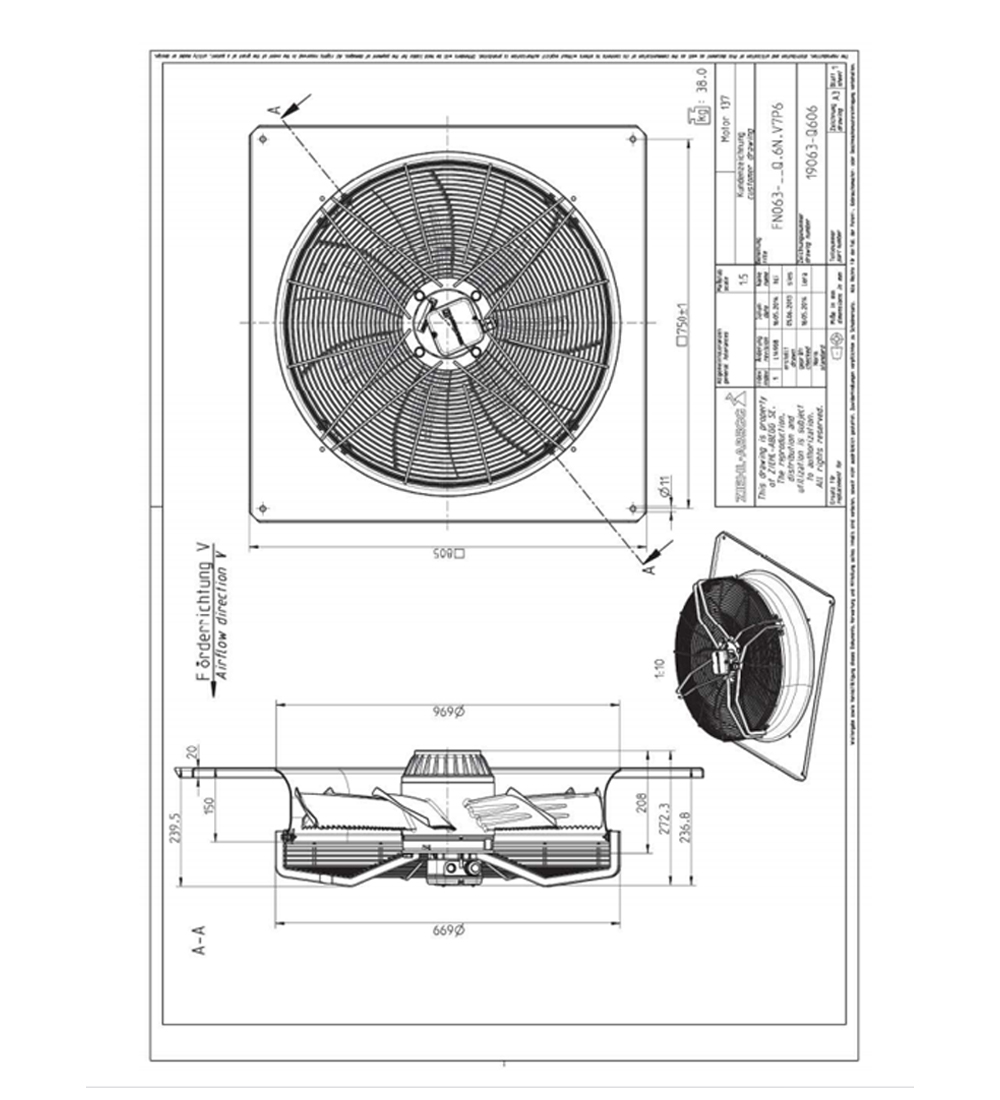

FN063-4DQ.6N.V7P6 Ziehl-Abegg Specification Drawing：

Applications

FN063-4DQ.6N.V7P6 can be considered for air-conditioning, refrigeration, condenser, heat-exchanger and industrial cooling applications where its duty point and dimensions match the system.

Selection and Replacement

Check airflow and system resistance together. For replacement, compare the complete FN063-4DQ.6N.V7P6 designation, voltage, size, power, speed, mounting and connection requirements.

FAQ

Q1. What is the FN063-4DQ.6N.V7P6?

A1. The FN063-4DQ.6N.V7P6 is a ZIEHL-ABEGG axial fan. Use the complete model number when requesting a quotation or checking a replacement.

Q2. What should I check before ordering the FN063-4DQ.6N.V7P6?

A2. Check the complete part number, rated voltage, dimensions, airflow and pressure requirements, input power, speed, mounting arrangement and electrical connection against your equipment requirements.

Q3. Can a similar model replace the FN063-4DQ.6N.V7P6?

A3. A similar base model should not automatically be treated as interchangeable. Confirm the full suffix and the technical data of the existing fan before substitution.

Request Product Information

Looking for the ZIEHL-ABEGG FN063-4DQ.6N.V7P6? Send the complete model number, quantity and application requirements to APAC FAN for product and availability information.
