QFR0624GHP0
Brand：
DELTA
Category：
Axial Fan
Description：
Brand：Delta
Part No：QFR0624GHP0
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：60*60*25
Max.Air Flow(m³/h)：20.5
Max.Pressure(Pa)：14.4
Input Power(W)：3.84
Speed(RPM)：7600
Noise(dB)：47
Part No：QFR0624GHP0
Fan Type：Compact Fan
Rated Voltage(V)：24
Size(mm)：60*60*25
Max.Air Flow(m³/h)：20.5
Max.Pressure(Pa)：14.4
Input Power(W)：3.84
Speed(RPM)：7600
Noise(dB)：47
Nominal data
Brand：
DELTA
Part No.：
QFR0624GHP0
Fan Type：
Axial Fan
Rated Voltage(V)：
24
Size(mm)：
60*60*25
Max.Air Flow(m³/h)：
21
Max.Pressure(Pa)：
14.4
Input Power(W)：
3.84
Speed(rpm)：
7600
Noise(db)：
47
Description

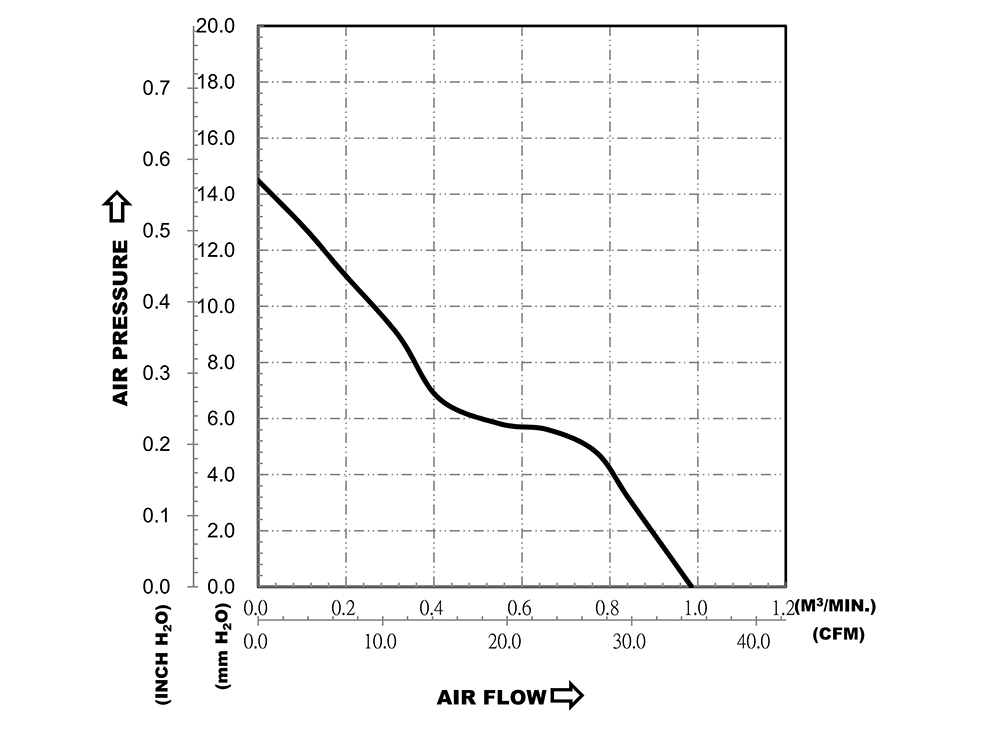

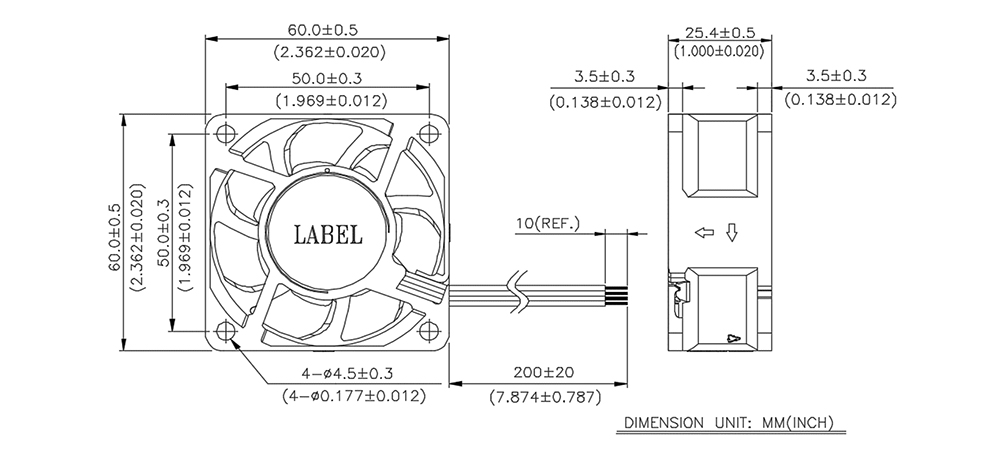

QFR0624GHP0 DELTA Specification drawing：
