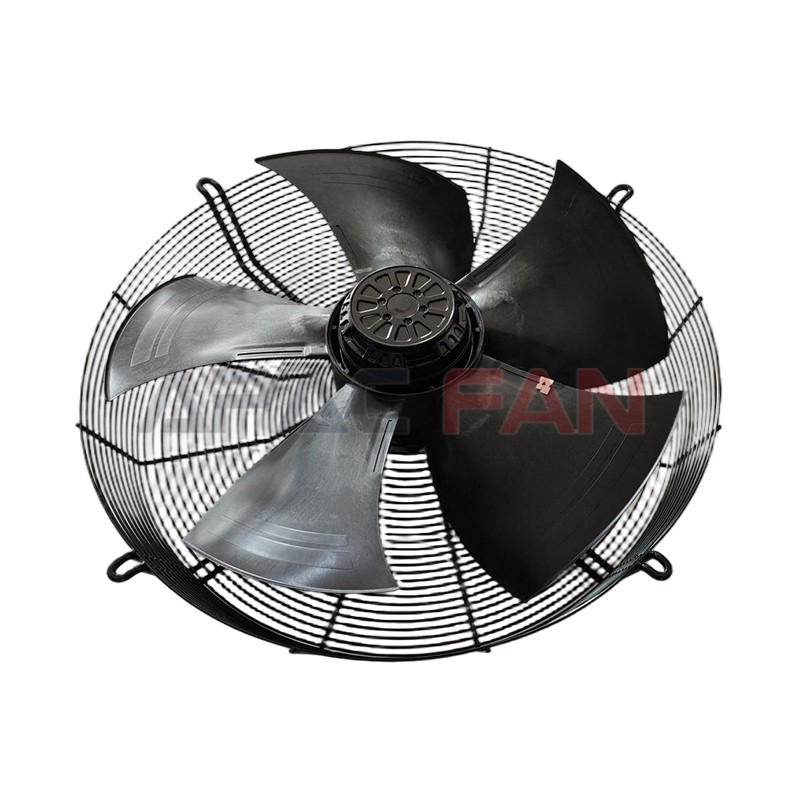

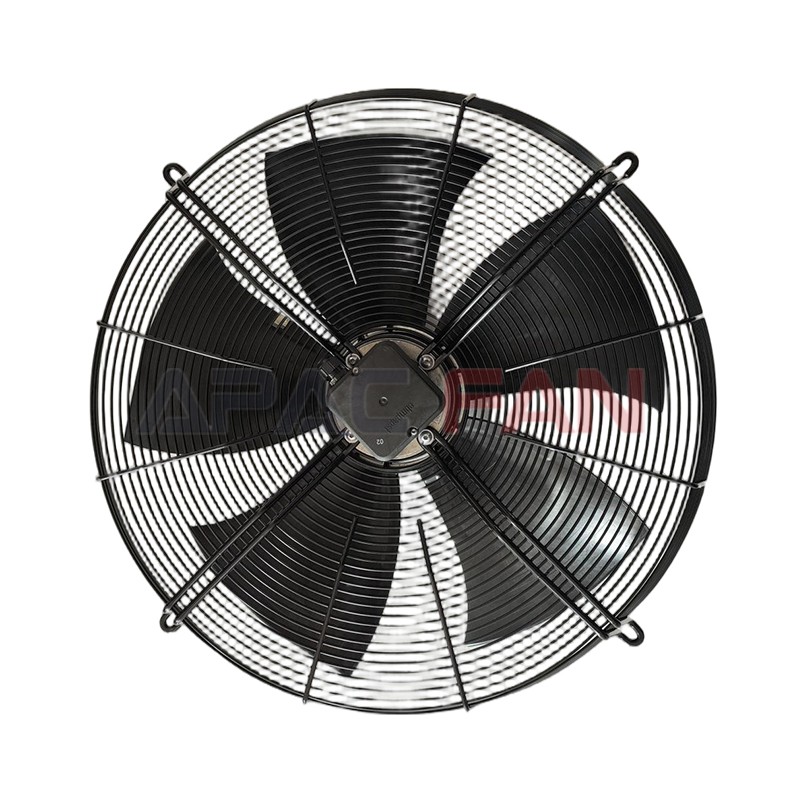

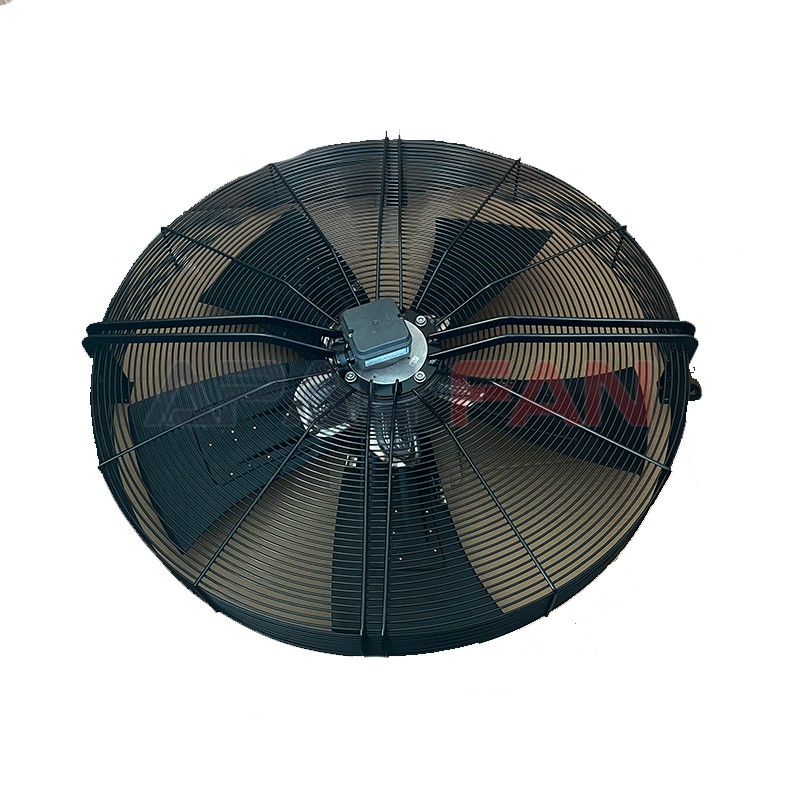

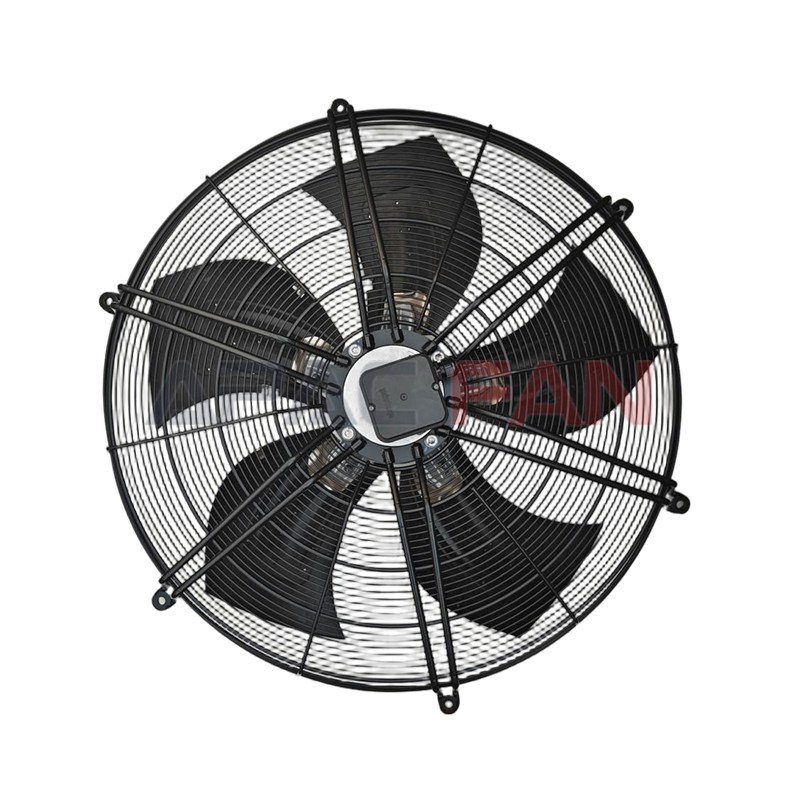

S8D630-AN01-01 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

S8D630AN0101.PDF

Category：

Axial Fan

Description：

Brand：ebmpapst
Part No：S8D630-AN01-01
Fan Type：Axial Fan
Rated Voltage(V)：480
Size(mm)：630
Max.Air Flow(m³/h)：9830
Max.Pressure(Pa)：37
Input Power(W)：270
Speed(RPM)：560
Noise(dB)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

S8D630-AN01-01

Fan Type：

Axial Fan

Rated Voltage(V)：

480

Size(mm)：

630

Max.Air Flow(m³/h)：

9830

Max.Pressure(Pa)：

Input Power(W)：

270

Speed(rpm)：

560

Noise(db)：

Description

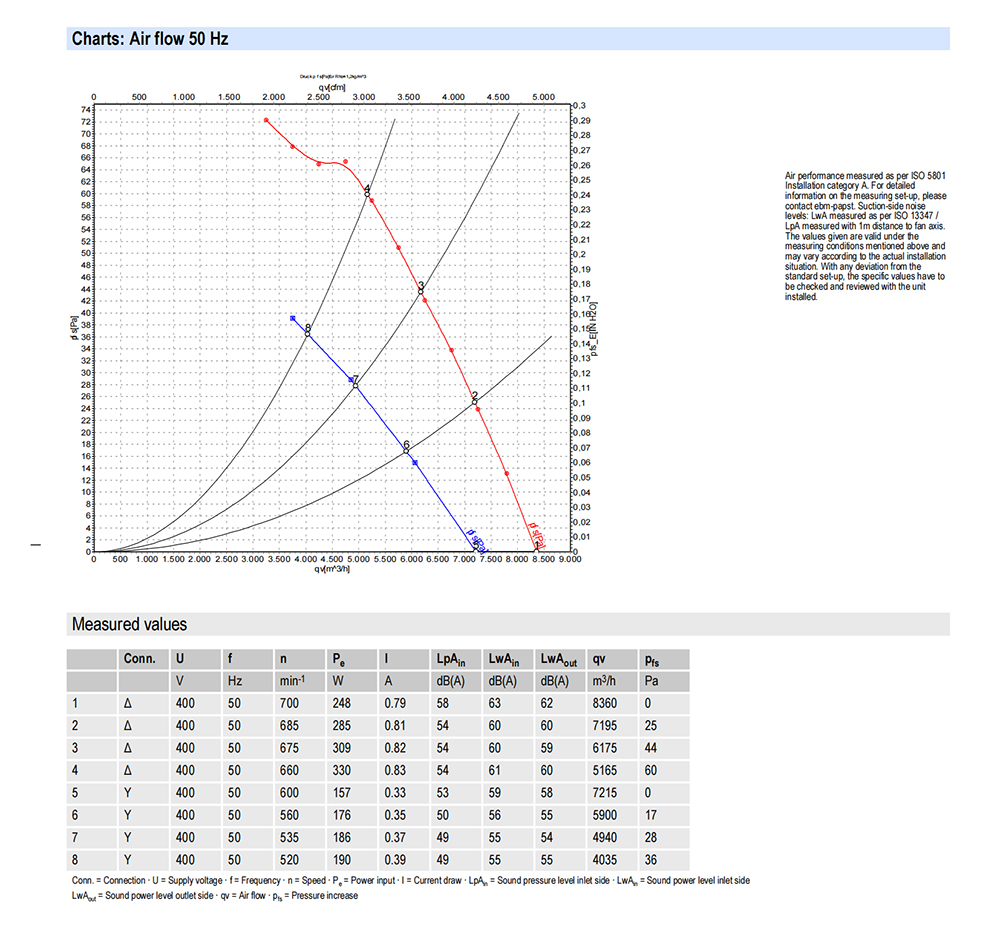

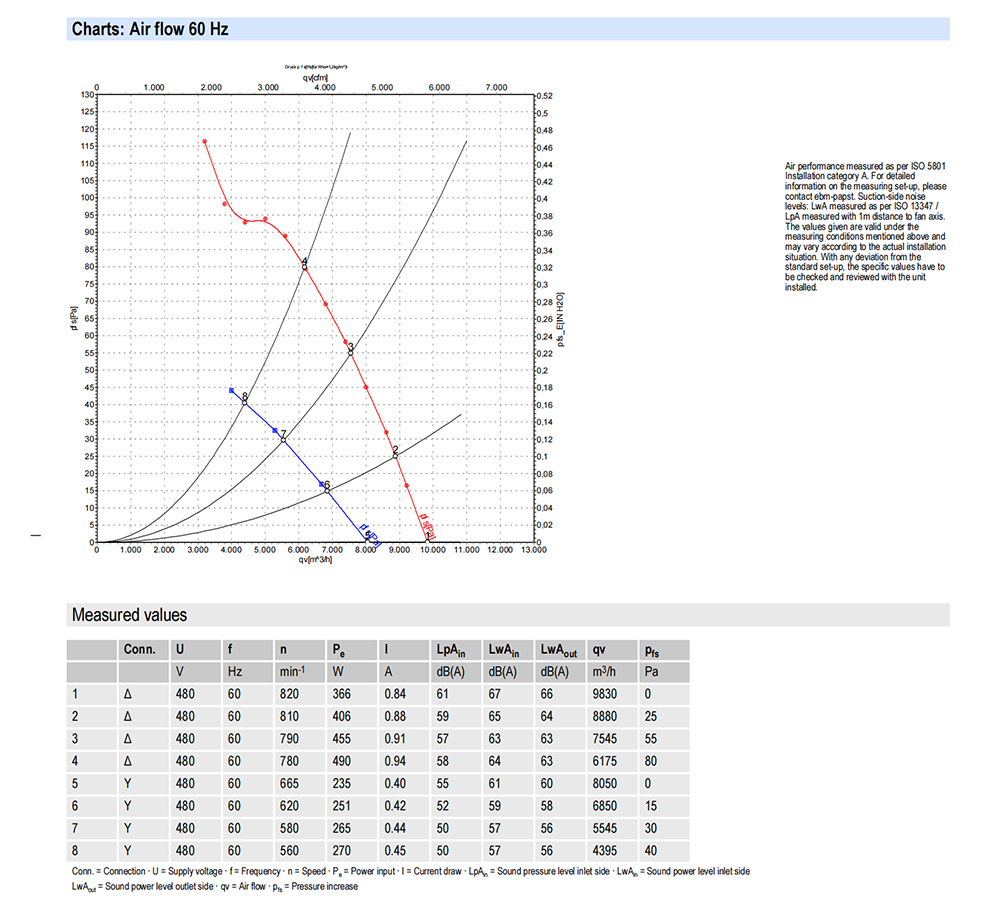

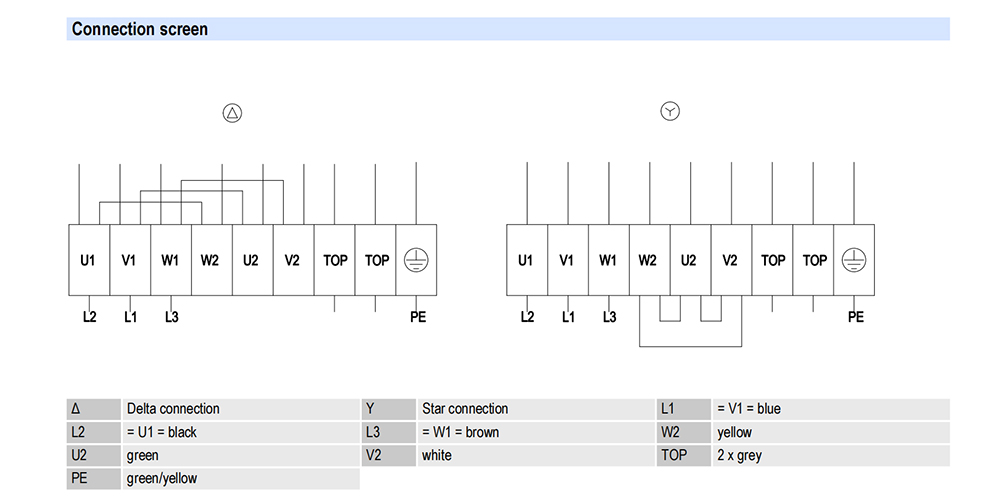

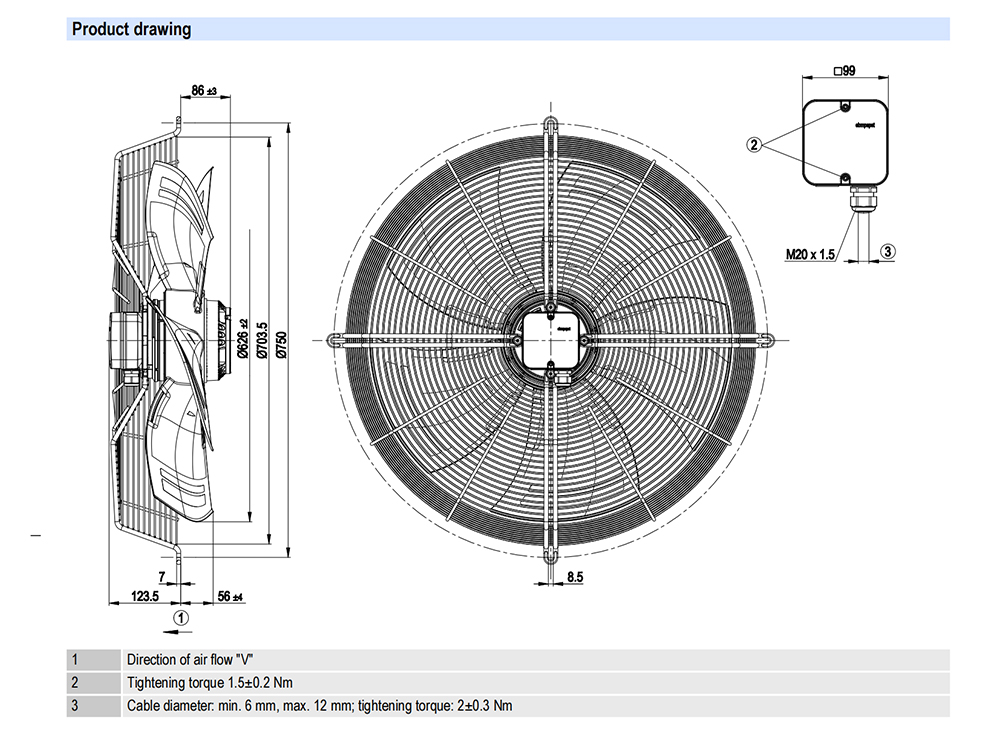

S8D630-AN01-01 Ebm-papst Specification drawing：
