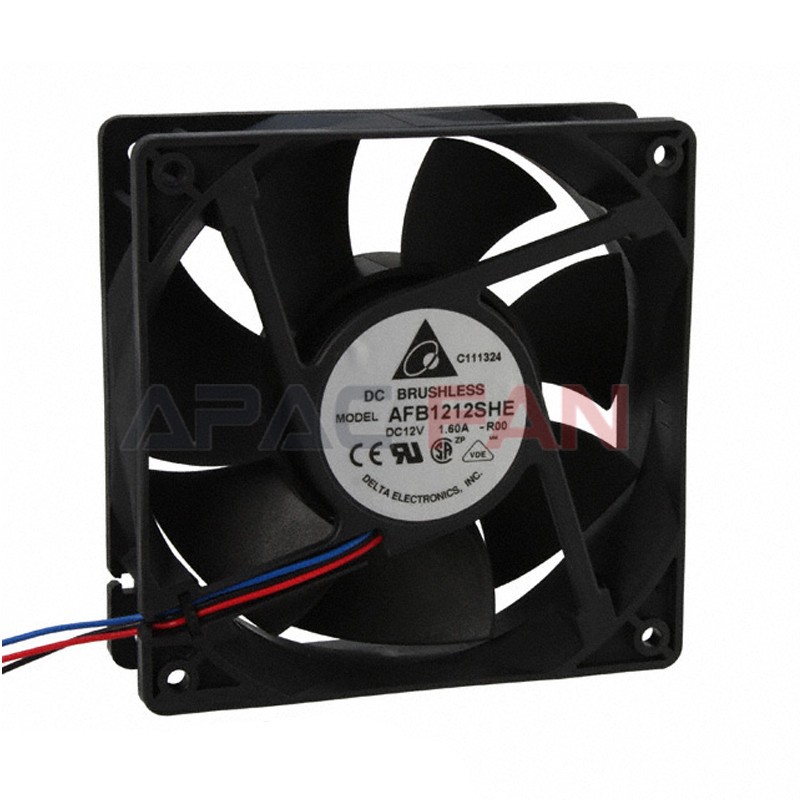

AFB1212SHE-R00
Brand：
DELTA
Category：
Axial Fan
Description：
Brand：Delta
Part No：AFB1212SHE-R00
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：120*120*38
Max.Air Flow(m³/h)：89.32
Max.Pressure(Pa)：14.3
Input Power(W)：12.6
Speed(RPM)：3700
Noise(dB)：53
Part No：AFB1212SHE-R00
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：120*120*38
Max.Air Flow(m³/h)：89.32
Max.Pressure(Pa)：14.3
Input Power(W)：12.6
Speed(RPM)：3700
Noise(dB)：53
Nominal data
Brand：
DELTA
Part No.：
AFB1212SHE-R00
Fan Type：
Axial Fan
Rated Voltage(V)：
12
Size(mm)：
120*120*38
Max.Air Flow(m³/h)：
89
Max.Pressure(Pa)：
14.3
Input Power(W)：
12.6
Speed(rpm)：
3700
Noise(db)：
53
Description

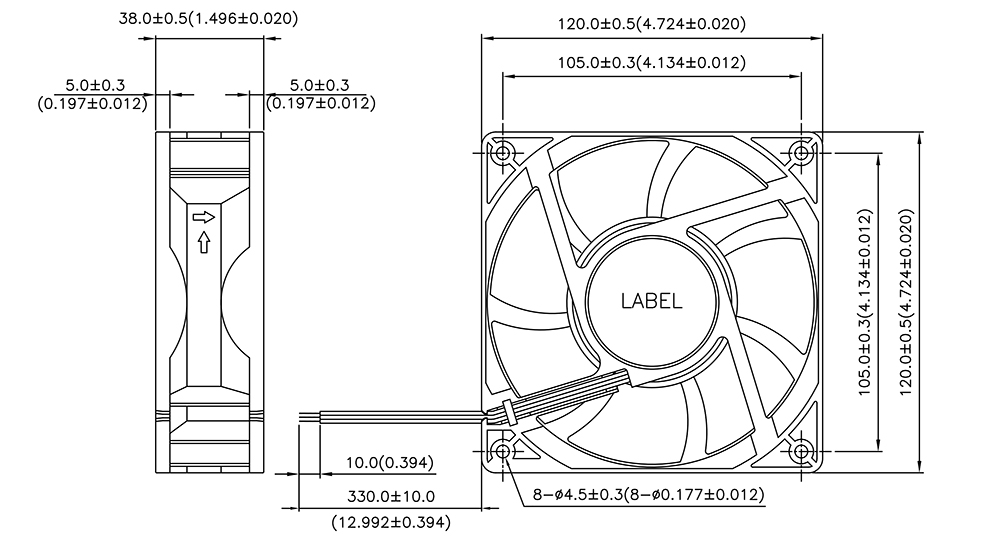

AFB1212SHE-R00 DELTA Specification drawing：
